finally tha Knock Max counts.
i will apriciate any help in LoadCal as i am still cant find why it is not correctly calculated. at least am sure that it shouldnt reach 300 according to my boost level.
i will apriciate any help in LoadCal as i am still cant find why it is not correctly calculated. at least am sure that it shouldnt reach 300 according to my boost level.
#18
Evolving Member
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: Abu Dhabi, UAE
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
jjf
i did modify the protocols.XML file as per your post. so i was able to log the AFRMAP successfully using LogWorks2. (if any body want the file i can forwaded to you)
then i used the evoscan approach as it is more accurate than mitsulogger.

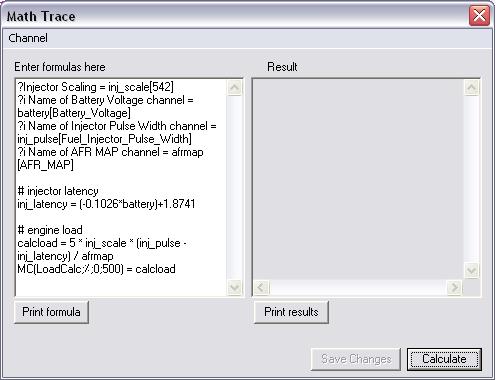

attache is the math trace formula.
why it is still not accurate. as if i used the same rpm and ignition timing degrees to determine the load from the stock map, i can find differences.?
i did modify the protocols.XML file as per your post. so i was able to log the AFRMAP successfully using LogWorks2. (if any body want the file i can forwaded to you)
then i used the evoscan approach as it is more accurate than mitsulogger.
attache is the math trace formula.
why it is still not accurate. as if i used the same rpm and ignition timing degrees to determine the load from the stock map, i can find differences.?
#20
Evolved Member
iTrader: (2)
Join Date: Oct 2002
Location: Somewhere
Posts: 1,328
Likes: 0
Received 0 Likes
on
0 Posts
I changed my injector latency to a static value .. I think that's your problem ..
If everything is stock .. even our injector latency values are different from the USDM Evos
Use this as your injector latency computation
(-0.1026*battery)+1.9226 ..
If everything is stock .. even our injector latency values are different from the USDM Evos
Use this as your injector latency computation
(-0.1026*battery)+1.9226 ..
#21
Evolving Member
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: Abu Dhabi, UAE
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
JoeBee,
my ecu id is 98640014..it is different. i am not sure about 2 byte load, but i tried using mitsulogger to check 2 byte load and the data reading speed were very slow with funny figures for all sensors?
gunzo,
u are my hero. yes your formula is correct i check it with the Injector Battery Voltage table in my stock map and it is working.
4.69 = 3.312
7.03 = 1.680
14.06 = 0.480
18.68 = 0.240
i will change the formula in LogWorks to calculate correct injector latency. it should work.
thanks for all. and still interested to know about 2 byte load.
my ecu id is 98640014..it is different. i am not sure about 2 byte load, but i tried using mitsulogger to check 2 byte load and the data reading speed were very slow with funny figures for all sensors?
gunzo,
u are my hero. yes your formula is correct i check it with the Injector Battery Voltage table in my stock map and it is working.
4.69 = 3.312
7.03 = 1.680
14.06 = 0.480
18.68 = 0.240
i will change the formula in LogWorks to calculate correct injector latency. it should work.
thanks for all. and still interested to know about 2 byte load.
#22
Evolving Member
Join Date: Sep 2006
Location: Germany
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
You can try the 2 Byte Load here:
https://www.evolutionm.net/forums/sh...46#post4071146
https://www.evolutionm.net/forums/sh...46#post4071146
#23
Evolved Member
JoeBee,
my ecu id is 98640014..it is different. i am not sure about 2 byte load, but i tried using mitsulogger to check 2 byte load and the data reading speed were very slow with funny figures for all sensors?
gunzo,
u are my hero. yes your formula is correct i check it with the Injector Battery Voltage table in my stock map and it is working.
4.69 = 3.312
7.03 = 1.680
14.06 = 0.480
18.68 = 0.240
i will change the formula in LogWorks to calculate correct injector latency. it should work.
thanks for all. and still interested to know about 2 byte load.
my ecu id is 98640014..it is different. i am not sure about 2 byte load, but i tried using mitsulogger to check 2 byte load and the data reading speed were very slow with funny figures for all sensors?
gunzo,
u are my hero. yes your formula is correct i check it with the Injector Battery Voltage table in my stock map and it is working.
4.69 = 3.312
7.03 = 1.680
14.06 = 0.480
18.68 = 0.240
i will change the formula in LogWorks to calculate correct injector latency. it should work.
thanks for all. and still interested to know about 2 byte load.
This is the same ECU ID as mine, I run a hex modifed to output real load, I can post up the ECUflash xml changes if you like.
MB
#24
Evolving Member
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: Abu Dhabi, UAE
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Hi
This is the same ECU ID as mine, I run a hex modifed to output real load, I can post up the ECUflash xml changes if you like.
This is the same ECU ID as mine, I run a hex modifed to output real load, I can post up the ECUflash xml changes if you like.
till now i couldnt log the real load.
thanks
#25
Evolving Member
iTrader: (1)
Milburn
#26
Evolving Member
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: Abu Dhabi, UAE
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Looking at your knock sums you posted, you have a few up there at the 5 counts. You might want to re visit the fueling and timing to reduce that. try to keep it at mo more than 3 counts anywhere. I usually do several back to back 1-4 WOT runs then check the last one for knock. That way you factor in heat soak . AFR looks OK so maybe take out 1 degree in the affected load cells. What boost are you running 1.7-1.8 bar?
Milburn
Milburn
i am tring to understand how to log real load (2 byte)?
#27
Evolved Member
Add these lines to your xml def for ecuflash
<table name="RequestID00" category="Misc" address="2e9e2" type="1D" level="1" scaling="uint16"/>
<table name="RequestID01" category="Misc" address="2e9e6" type="1D" level="1" scaling="uint16"/>
Then change RequestID00 to 34908 and request ID01 to 34909 in ECUflash, you can now log real load in Mitislogger or Evoscan with the appropeiate additions for each logger
Evoscan
<DataListItem DataLog="Y" Display="Load0" LogReference="Load0" RequestID="00" Eval="x" Unit="steps" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="255" ChartMin="0" ChartMax="255" Notes="" />
<DataListItem DataLog="Y" Display="Load1" LogReference="Load1" RequestID="01" Eval="x" Unit="steps" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="255" ChartMin="0" ChartMax="255" Notes="" />
<DataListItem DataLog="Y" Display="2byteLoad" LogReference="2byteLoad" RequestID="FF" Eval="((256*[Load0])+[Load1])*0.3125" Unit="load" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="500" ChartMin="0" ChartMax="500" Notes="2 byte load read from ECU" />
Mistislogger
<Request LogReference="requestID00" RequestID="00" Eval="x" Unit="INT" Logged="y" Response="2"/>
<Request LogReference="requestID01" RequestID="01" Eval="x" Unit="INT" Logged="y" Response="2"/>
<Request LogReference="Load" RequestID="FF" Eval="((256*requestID00)+requestID01)*10/32" Unit="2byteLoad" Logged="y" Response="2"/>
ROM file changes courtesy jcsbanks, loggers a couple of smart people on here who unfortunately I can't remember, beer has interfered in this process.
MB
#28
Evolved Member
I think gunzo should give all 7 owners on here an outing in his works ride, I'm sure he can get a "D" for a few days..................."I have control...oh cr@p"
MB
MB
#29
Evolving Member
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: Abu Dhabi, UAE
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Note this will only work for a JDM 7 using 98640014 xml deff.
Add these lines to your xml def for ecuflash
<table name="RequestID00" category="Misc" address="2e9e2" type="1D" level="1" scaling="uint16"/>
<table name="RequestID01" category="Misc" address="2e9e6" type="1D" level="1" scaling="uint16"/>
Then change RequestID00 to 34908 and request ID01 to 34909 in ECUflash, you can now log real load in Mitislogger or Evoscan with the appropeiate additions for each logger
Evoscan
<DataListItem DataLog="Y" Display="Load0" LogReference="Load0" RequestID="00" Eval="x" Unit="steps" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="255" ChartMin="0" ChartMax="255" Notes="" />
<DataListItem DataLog="Y" Display="Load1" LogReference="Load1" RequestID="01" Eval="x" Unit="steps" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="255" ChartMin="0" ChartMax="255" Notes="" />
<DataListItem DataLog="Y" Display="2byteLoad" LogReference="2byteLoad" RequestID="FF" Eval="((256*[Load0])+[Load1])*0.3125" Unit="load" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="500" ChartMin="0" ChartMax="500" Notes="2 byte load read from ECU" />
Mistislogger
<Request LogReference="requestID00" RequestID="00" Eval="x" Unit="INT" Logged="y" Response="2"/>
<Request LogReference="requestID01" RequestID="01" Eval="x" Unit="INT" Logged="y" Response="2"/>
<Request LogReference="Load" RequestID="FF" Eval="((256*requestID00)+requestID01)*10/32" Unit="2byteLoad" Logged="y" Response="2"/>
ROM file changes courtesy jcsbanks, loggers a couple of smart people on here who unfortunately I can't remember, beer has interfered in this process.
MB
Add these lines to your xml def for ecuflash
<table name="RequestID00" category="Misc" address="2e9e2" type="1D" level="1" scaling="uint16"/>
<table name="RequestID01" category="Misc" address="2e9e6" type="1D" level="1" scaling="uint16"/>
Then change RequestID00 to 34908 and request ID01 to 34909 in ECUflash, you can now log real load in Mitislogger or Evoscan with the appropeiate additions for each logger
Evoscan
<DataListItem DataLog="Y" Display="Load0" LogReference="Load0" RequestID="00" Eval="x" Unit="steps" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="255" ChartMin="0" ChartMax="255" Notes="" />
<DataListItem DataLog="Y" Display="Load1" LogReference="Load1" RequestID="01" Eval="x" Unit="steps" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="255" ChartMin="0" ChartMax="255" Notes="" />
<DataListItem DataLog="Y" Display="2byteLoad" LogReference="2byteLoad" RequestID="FF" Eval="((256*[Load0])+[Load1])*0.3125" Unit="load" MetricEval="" MetricUnit="" ResponseBytes="1" GaugeMin="0" GaugeMax="500" ChartMin="0" ChartMax="500" Notes="2 byte load read from ECU" />
Mistislogger
<Request LogReference="requestID00" RequestID="00" Eval="x" Unit="INT" Logged="y" Response="2"/>
<Request LogReference="requestID01" RequestID="01" Eval="x" Unit="INT" Logged="y" Response="2"/>
<Request LogReference="Load" RequestID="FF" Eval="((256*requestID00)+requestID01)*10/32" Unit="2byteLoad" Logged="y" Response="2"/>
ROM file changes courtesy jcsbanks, loggers a couple of smart people on here who unfortunately I can't remember, beer has interfered in this process.
MB
thank to burgers22, JoeBee, gunzo, jcsbanks and all the other great guys.
i dont feel lonely any more being an EVO VII driver while most others driving EVO VIII. we have a great EVO VII group here.
