Let's see your fully tuned timing maps
#2027
Evolving Member
iTrader: (3)
Join Date: Dec 2010
Location: Okinawa
Posts: 217
Likes: 0
Received 0 Likes
on
0 Posts
quick question for you experts. I am having hard shifting knock problems from 1st to 2nd only. I was reading on here about smooth the transition timing from your high RPM point to the next gear RPM load. So for instance from 7,000 in first gear to 5000 RPM in second gear the transitions have to be relatively smooth to prevent knock. My question to you guys is the rule of thumb of no more than 3-4* difference between those load cells even when shifting to the next gear still hold true? Or any advice for those that run quartermile would be nice. Thanks.
FYI I am hitting about 280 load about 5000, and 240 load(soon to be 250) at 7k on the stock evo 7 turbo.
FYI I am hitting about 280 load about 5000, and 240 load(soon to be 250) at 7k on the stock evo 7 turbo.
#2028
Evolved Member
iTrader: (6)
quick question for you experts. I am having hard shifting knock problems from 1st to 2nd only. I was reading on here about smooth the transition timing from your high RPM point to the next gear RPM load. So for instance from 7,000 in first gear to 5000 RPM in second gear the transitions have to be relatively smooth to prevent knock. My question to you guys is the rule of thumb of no more than 3-4* difference between those load cells even when shifting to the next gear still hold true? Or any advice for those that run quartermile would be nice. Thanks.
FYI I am hitting about 280 load about 5000, and 240 load(soon to be 250) at 7k on the stock evo 7 turbo.
FYI I am hitting about 280 load about 5000, and 240 load(soon to be 250) at 7k on the stock evo 7 turbo.
But for the timing part:
No shift knock here, about 1* change by 10 load.
No reason to be less smooth than that on upshifts:
A lazy shift would look like (depend on gear):
245 load at 7000,
140 load at 5200
265 load at 5300.
Last edited by domyz; Jan 5, 2013 at 08:42 PM.
#2030
Evolved Member
iTrader: (6)

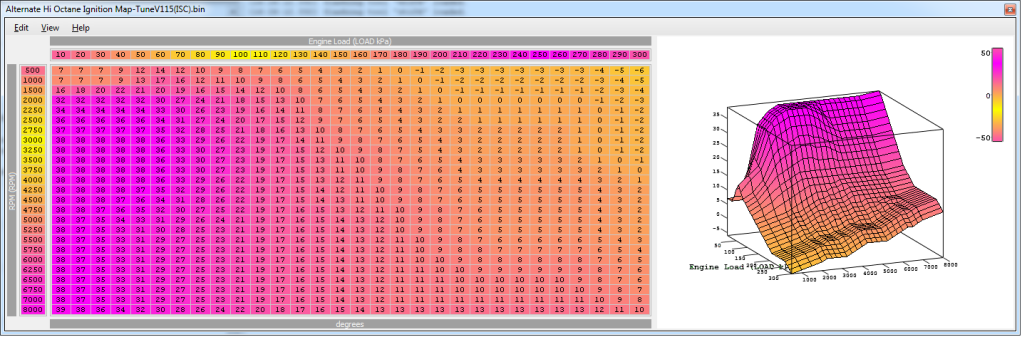

It's a nice map. Is it 93?
With that taper aren't you able to run more up top?
And watch it I see a 11-12-11 in your run. This area need work it also has some 12-13-12, 12-11-12.
Give a shot to this smoothing tool. It should clear all that wrong cells: https://www.evolutionm.net/forums/ec...t-version.html
Last edited by domyz; Jan 6, 2013 at 09:35 AM.
#2031
Evolved Member
iTrader: (8)
Join Date: Nov 2010
Location: Georgia
Posts: 752
Likes: 0
Received 0 Likes
on
0 Posts
yep, it's 93
when logging it registers 15-16's up top where I have 12's and 1* at peak load area, where I have 3's
so can't rely 100% on the map
when logging it registers 15-16's up top where I have 12's and 1* at peak load area, where I have 3's
so can't rely 100% on the map
Last edited by stunt2; Jan 6, 2013 at 10:04 AM.
#2032
#2037
Evolved Member
iTrader: (12)
#2038
Evolving Member
iTrader: (3)
Join Date: Dec 2010
Location: Okinawa
Posts: 217
Likes: 0
Received 0 Likes
on
0 Posts
That drag shift knock could be induced by worn engine mount, exhaust hitting something...
But for the timing part:
No shift knock here, about 1* change by 10 load.
No reason to be less smooth than that on upshifts:
A lazy shift would look like (depend on gear):
245 load at 7000,
140 load at 5200
265 load at 5300.
But for the timing part:
No shift knock here, about 1* change by 10 load.
No reason to be less smooth than that on upshifts:
A lazy shift would look like (depend on gear):
245 load at 7000,
140 load at 5200
265 load at 5300.
your timing map looks beautiful btw. much smoother than mine at this point.
Stock block
stock Evo 7 turbo w/10.5 hotside
GSC S1 cams
Map Rev 3 intake manifold
ETS upper/lower intercooler piping w/3.8" garret core
Hybrid boost control (grimspeed/Joe P manual)
3" intake/Carbing cold air box/ Blitz SUS steel mesh filter
Map 02 Eliminator downpipe
AMS exhaust/ no cat
Map short runner tubular manifold
Calan Catch Can w/ -10 fittings off of valvecover
Last edited by mean4g63; Jan 6, 2013 at 01:10 PM.
#2040
Evolved Member
iTrader: (6)
hmm looks like 4* difference on your "lazy" shift. Looks like I am now in the ballpark. Did a few logs and things are definitely getting better. It's amazing how much timing you are running on 91. Your timing map looks very very similar to mine on 93-94. Surprised you have't tried to put any numbers down on the VD? My current VD numbers are 400 WHP, 395 foot-pounds of torque. We are putting down the same load at 7k..except I am running 280-290 peak load at 5k falling to 240 at 7k.
your timing map looks beautiful btw. much smoother than mine at this point.
Stock block
stock Evo 7 turbo w/10.5 hotside
GSC S1 cams
Map Rev 3 intake manifold
ETS upper/lower intercooler piping w/3.8" garret core
Hybrid boost control (grimspeed/Joe P manual)
3" intake/Carbing cold air box/ Blitz SUS steel mesh filter
Map 02 Eliminator downpipe
AMS exhaust/ no cat
Map short runner tubular manifold
Calan Catch Can w/ -10 fittings off of valvecover
your timing map looks beautiful btw. much smoother than mine at this point.
Stock block
stock Evo 7 turbo w/10.5 hotside
GSC S1 cams
Map Rev 3 intake manifold
ETS upper/lower intercooler piping w/3.8" garret core
Hybrid boost control (grimspeed/Joe P manual)
3" intake/Carbing cold air box/ Blitz SUS steel mesh filter
Map 02 Eliminator downpipe
AMS exhaust/ no cat
Map short runner tubular manifold
Calan Catch Can w/ -10 fittings off of valvecover
My timing isn't "that high" for 91 octane. Many owners run this timing. My first maps I ran 8-9* at 7000rpm and I still had knock everyday. With the work I've put in the map smoothing it and working timing.... now I can run 10-11*. This include working the fuel map and boost as well.
At this point, adding 1* anywhere in the WOT part of the map starts to randomly knock.
I can assure you that my knock light comes on about once a week. The car is knock free. One thing I had to do to make the car happy was holding 5* at higher RPM than before. After 5500, the car is more timing hungry (VE / boost are dropping).
I think it's a little inflated: 400 out of your VII 10.5 turbo... (which i think is VIII equivalent)
Last edited by domyz; Jan 6, 2013 at 05:24 PM.
