Let's see your fully tuned timing maps
#1141
Okay, this is the timing map my car is running by the previous tuner:
From everything I've learned about tuning, this doesn't seem right.
Thoughts? Tips?
Before putting cams in, I was hitting as low as a 10.0 AFR.
My setup:
Evo 9
25 psi (Tru-boost), 93 octane
Intake
TBE
Recently installed, in the process of tuning myself:
GSC S1 Cams
ECU Boost control
From everything I've learned about tuning, this doesn't seem right.
Thoughts? Tips?
Before putting cams in, I was hitting as low as a 10.0 AFR.
My setup:
Evo 9
25 psi (Tru-boost), 93 octane
Intake
TBE
Recently installed, in the process of tuning myself:
GSC S1 Cams
ECU Boost control
#1142
Evolved Member
iTrader: (41)

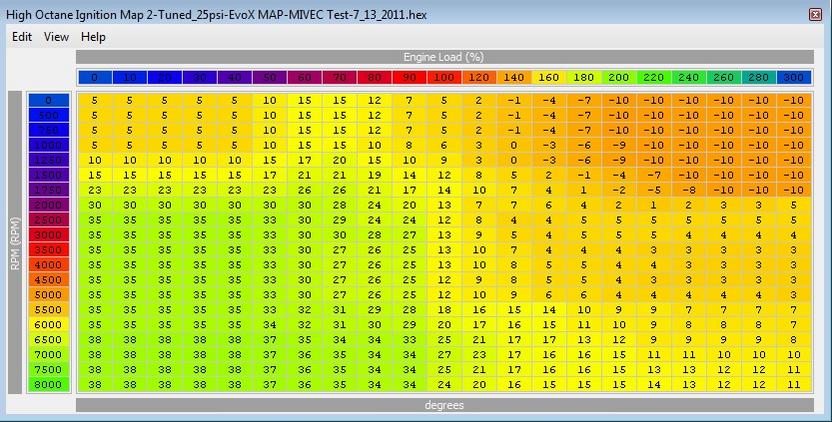

Okay, this is the timing map my car is running by the previous tuner:Attachment 174204
From everything I've learned about tuning, this doesn't seem right.
Thoughts? Tips?
Before putting cams in, I was hitting as low as a 10.0 AFR.
My setup:
Evo 9
25 psi (Tru-boost), 93 octane
Intake
TBE
Recently installed, in the process of tuning myself:
GSC S1 Cams
ECU Boost control
From everything I've learned about tuning, this doesn't seem right.
Thoughts? Tips?
Before putting cams in, I was hitting as low as a 10.0 AFR.
My setup:
Evo 9
25 psi (Tru-boost), 93 octane
Intake
TBE
Recently installed, in the process of tuning myself:
GSC S1 Cams
ECU Boost control
#1143
Evolving Member
iTrader: (11)

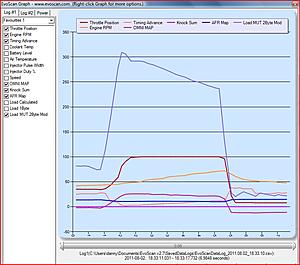

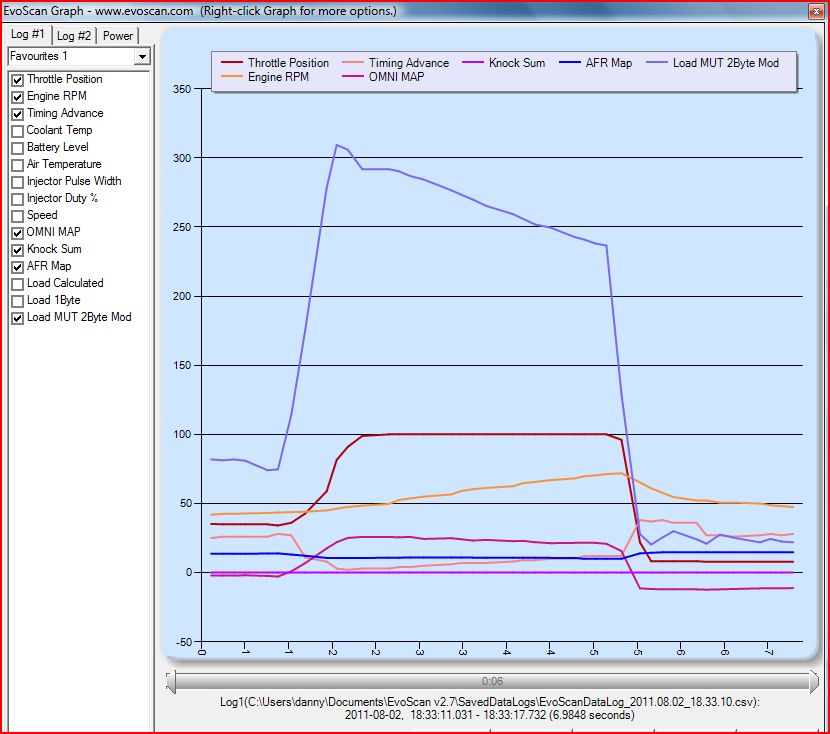

This is my last VD sheet and the Evoscan log for it,i started the run kinda late 4k rpm but is still right about the same as some other runs,still there's more power to be made though since i still haven't been able to log real afr's,i've been keeping my afr's pretty rich to be on the safe side, been having problems with my serial to usb adapter so i can't log from my Zeitronix wideband into Evoscan,thinking about logging afr right into my pcm but i'd rather wait to fix my adapter issue.Once i can log afr i'm sure i can lean out some and make more power.
Last edited by VIIIdriver; Aug 4, 2011 at 05:27 AM. Reason: More info
#1144
That definitely needs some work bud. As a general rule, timing in each load column should always be increasing as you go down the columns through the RPMs. You've got a lot of choppiness in most of your load columns from 70 and up. Also, timing in the RPM rows should always be decreasing as load increases or as you move left to right through the load columns. Most of them look OK except for the rows for 2000, 2500, and 3000 RPMs. Those have a lot of choppiness in the boosted areas. Best wishes with getting things straightened out.
I will post my revised version in a bit.
Do you think it's running too much timing though? I feel like I'm going to have to reduce the timing quite a bit when I bring my AFR's up to 11.5 or so, where they're supposed to be.
#1145
Evolved Member
iTrader: (8)
This is my last VD sheet and the Evoscan log for it,i started the run kinda late 4k rpm but is still right about the same as some other runs,still there's more power to be made though since i still haven't been able to log real afr's,i've been keeping my afr's pretty rich to be on the safe side, been having problems with my serial to usb adapter so i can't log from my Zeitronix wideband into Evoscan,thinking about logging afr right into my pcm but i'd rather wait to fix my adapter issue.Once i can log afr i'm sure i can lean out some and make more power.
My timing map looks like this: 2 Degrees of timing during peak load, 7 degrees at peak torque, and 17 degrees at redline.
Just an FYI when it comes to AFR's... I've been playing with my AFR's and I have logs in the low 12's, high 11's, mid 11's, low 11's and high 10's and my whp changed + or - 5 whp. Thats it. Once youre on the verge of max available boost and timing, AFR is more of a safety net.
#1146
Evolved Member
iTrader: (41)
My thoughts exactly. I just wanted a second opinion because this was done by someone who is supposed to be a reputable tuner...
I will post my revised version in a bit.
Do you think it's running too much timing though? I feel like I'm going to have to reduce the timing quite a bit when I bring my AFR's up to 11.5 or so, where they're supposed to be.
I will post my revised version in a bit.
Do you think it's running too much timing though? I feel like I'm going to have to reduce the timing quite a bit when I bring my AFR's up to 11.5 or so, where they're supposed to be.
#1147
I definitely don't think you're running too much. 3-4* at peak tq is pretty safe IMO. Once you get things smoothed out you'll probably be able to add another degree or two without a problem. Personally I'm running about 6* at peak load and TQ without any issues but it does depend on the setup. You also should be able to get away with 12-15* at 7000 and it looks like you are but it's hard to tell what you're hitting at 7K without seeing a log. Also, I think you've got some room there to smooth things out at 7K so that transitions from one load column to the next above 100 are a little more even.
Does that look better to ya?
#1149
Evolved Member
iTrader: (20)
Join Date: Mar 2009
Location: Big city, Bright lights
Posts: 2,389
Likes: 0
Received 11 Likes
on
10 Posts

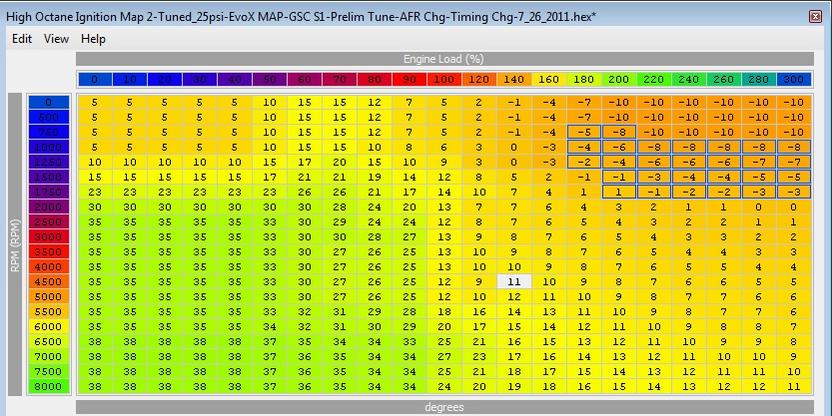

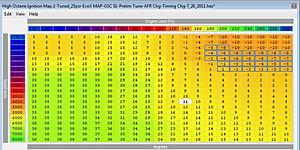

Here is my smoothed out version, but keep in mind that this is on an Evo 9, which, from what I understand, doesn't take as much timing as an 8 (correct me if I'm wrong):
Attachment 174219
Does that look better to ya?
Attachment 174219
Does that look better to ya?
you have it backwards, a 9 will take more timing than an 8. im running *5 at pk tq and logging about *15 at 7k. but mind you i have an extremely rich car because i have no luck getting wide bands to work.
oh wait i just noticed you have cams so you will probably wind up with a little less for more power.
#1150
looks much better. post a log.
you have it backwards, a 9 will take more timing than an 8. im running *5 at pk tq and logging about *15 at 7k. but mind you i have an extremely rich car because i have no luck getting wide bands to work.
oh wait i just noticed you have cams so you will probably wind up with a little less for more power.
you have it backwards, a 9 will take more timing than an 8. im running *5 at pk tq and logging about *15 at 7k. but mind you i have an extremely rich car because i have no luck getting wide bands to work.
oh wait i just noticed you have cams so you will probably wind up with a little less for more power.
Maybe they are getting outdated?
Anyway, so you're thinking since I have cams I should maybe be in the 3-4 range then at 3500-3700 rpms? I just need something to get started with to be safe and start logging/changing things, you know...
#1151
Evolved Member
iTrader: (8)
looks much better. post a log.
you have it backwards, a 9 will take more timing than an 8. im running *5 at pk tq and logging about *15 at 7k. but mind you i have an extremely rich car because i have no luck getting wide bands to work.
oh wait i just noticed you have cams so you will probably wind up with a little less for more power.
you have it backwards, a 9 will take more timing than an 8. im running *5 at pk tq and logging about *15 at 7k. but mind you i have an extremely rich car because i have no luck getting wide bands to work.
oh wait i just noticed you have cams so you will probably wind up with a little less for more power.
Not sure, but i'm pretty sure 9's take more in the midrange and less up top. I'm running 17 degrees at 7k, 2 degrees at peak load.
#1153
Evolving Member
iTrader: (11)
That looks nice. My best is 362whp and 346 ft lbs, 25 psi dropping to 21 at redline. My 8/10.5 turbo needed the cams to make that much torque and power. Pre- cams, I was stuck at 310 torque, 343 whp.
My timing map looks like this: 2 Degrees of timing during peak load, 7 degrees at peak torque, and 17 degrees at redline.
Just an FYI when it comes to AFR's... I've been playing with my AFR's and I have logs in the low 12's, high 11's, mid 11's, low 11's and high 10's and my whp changed + or - 5 whp. Thats it. Once youre on the verge of max available boost and timing, AFR is more of a safety net.
My timing map looks like this: 2 Degrees of timing during peak load, 7 degrees at peak torque, and 17 degrees at redline.
Just an FYI when it comes to AFR's... I've been playing with my AFR's and I have logs in the low 12's, high 11's, mid 11's, low 11's and high 10's and my whp changed + or - 5 whp. Thats it. Once youre on the verge of max available boost and timing, AFR is more of a safety net.
