Need Help Viewing MUT
Hi All,
I'm looking to enable 2byte load and I can't get the MUT table to appear in ECUFlash.
My ROM ID is 96420008, and I used 39fa0 as the table address per the 2 byte thread
https://www.evolutionm.net/forums/ec...te-thread.html
below is the XML I added to the 96420008.xml definition file
Any help is appreciated, from searching this what I've done should work?
<table name="MUT table" category="Misc" address="39fa0" type="3D" level="1" scaling="Hex16">
<table name="X" type="Static X Axis" elements="32" scaling="Hex16">
<data>-</data><data>0</data>
<data>-</data><data>1</data>
<data>-</data><data>2</data>
<data>-</data><data>3</data>
<data>-</data><data>4</data>
<data>-</data><data>5</data>
<data>-</data><data>6</data>
<data>-</data><data>7</data>
<data>-</data><data>8</data>
<data>-</data><data>9</data>
<data>-</data><data>A</data>
<data>-</data><data>B</data>
<data>-</data><data>C</data>
<data>-</data><data>D</data>
<data>-</data><data>E</data>
<data>-</data><data>F</data>
</table>
<table name="Y" type="Static Y Axis" elements="30">
<data>MUT0X</data>
<data>MUT1X</data>
<data>MUT2X</data>
<data>MUT3X</data>
<data>MUT4X</data>
<data>MUT5X</data>
<data>MUT6X</data>
<data>MUT7X</data>
<data>MUT8X</data>
<data>MUT9X</data>
<data>MUTAX</data>
<data>MUTBX</data>
<data>MUTCX</data>
<data>MUTDX</data>
<data>MUTEX</data>
<data>MUTFX</data>
<data>MUT10X</data>
<data>MUT11X</data>
<data>MUT12X</data>
<data>MUT13X</data>
<data>MUT14X</data>
<data>MUT15X</data>
<data>MUT16X</data>
<data>MUT17X</data>
<data>MUT18X</data>
<data>MUT19X</data>
<data>MUT1AX</data>
<data>MUT1BX</data>
<data>MUT1CX</data>
<data>MUT1DX</data>
</table>
</table>
I'm looking to enable 2byte load and I can't get the MUT table to appear in ECUFlash.
My ROM ID is 96420008, and I used 39fa0 as the table address per the 2 byte thread
https://www.evolutionm.net/forums/ec...te-thread.html
below is the XML I added to the 96420008.xml definition file
Any help is appreciated, from searching this what I've done should work?
<table name="MUT table" category="Misc" address="39fa0" type="3D" level="1" scaling="Hex16">
<table name="X" type="Static X Axis" elements="32" scaling="Hex16">
<data>-</data><data>0</data>
<data>-</data><data>1</data>
<data>-</data><data>2</data>
<data>-</data><data>3</data>
<data>-</data><data>4</data>
<data>-</data><data>5</data>
<data>-</data><data>6</data>
<data>-</data><data>7</data>
<data>-</data><data>8</data>
<data>-</data><data>9</data>
<data>-</data><data>A</data>
<data>-</data><data>B</data>
<data>-</data><data>C</data>
<data>-</data><data>D</data>
<data>-</data><data>E</data>
<data>-</data><data>F</data>
</table>
<table name="Y" type="Static Y Axis" elements="30">
<data>MUT0X</data>
<data>MUT1X</data>
<data>MUT2X</data>
<data>MUT3X</data>
<data>MUT4X</data>
<data>MUT5X</data>
<data>MUT6X</data>
<data>MUT7X</data>
<data>MUT8X</data>
<data>MUT9X</data>
<data>MUTAX</data>
<data>MUTBX</data>
<data>MUTCX</data>
<data>MUTDX</data>
<data>MUTEX</data>
<data>MUTFX</data>
<data>MUT10X</data>
<data>MUT11X</data>
<data>MUT12X</data>
<data>MUT13X</data>
<data>MUT14X</data>
<data>MUT15X</data>
<data>MUT16X</data>
<data>MUT17X</data>
<data>MUT18X</data>
<data>MUT19X</data>
<data>MUT1AX</data>
<data>MUT1BX</data>
<data>MUT1CX</data>
<data>MUT1DX</data>
</table>
</table>
#3
Newbie
Thread Starter
iTrader: (1)
Join Date: Aug 2004
Location: ny
Posts: 61
Likes: 0
Received 0 Likes
on
0 Posts

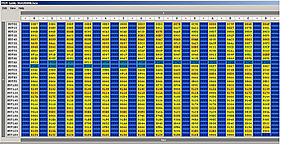

Thanks, but should the MUT table appear in ECUFlash at this point? I do not see it in ECUFlash
These are the steps I followed, however the address location in this site's master index looks incorrect for my ROM ID
http://evoecu.logic.net/wiki/Add_MUT_Table_To_EcuFlash
- Locate your ROM ID (an 8-digit number, something like 96940011).
- Find the documentation specific to your ROM in our master index, and look up the MUT table address.
- Open up the directory C:\Program Files\OpenECU\EcuFlash\rommetadata\mitsubishi\evo.
- In that directory, find a file named romid.xml (ie. 96940011.xml). Open that file with notepad or wordpad.
- Add the following chunk of XML to the very end of the file (but before the "</rom>" text at the very end), making sure to change the address="XXX" portion on the first line to refer to the MUT table address for your ROM. (For example, if your ROM is 96940011, then your MUT table address is 3f314, so you would change that section to address="3f314".)
- Open the HEX or BIN file for your ROM with EcuFlash.

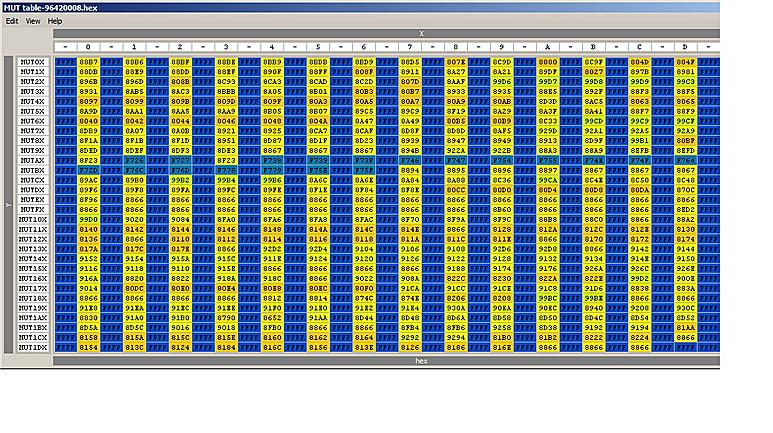

- Scroll down to the "Misc" section, and you should see "MUT Table". Open it, and confirm that it is reading correctly; you should see a large 16x32-element table, with alternating rows of data and FFFF.
These are the steps I followed, however the address location in this site's master index looks incorrect for my ROM ID
http://evoecu.logic.net/wiki/Add_MUT_Table_To_EcuFlash
- Locate your ROM ID (an 8-digit number, something like 96940011).
- Find the documentation specific to your ROM in our master index, and look up the MUT table address.
- Open up the directory C:\Program Files\OpenECU\EcuFlash\rommetadata\mitsubishi\evo.
- In that directory, find a file named romid.xml (ie. 96940011.xml). Open that file with notepad or wordpad.
- Add the following chunk of XML to the very end of the file (but before the "</rom>" text at the very end), making sure to change the address="XXX" portion on the first line to refer to the MUT table address for your ROM. (For example, if your ROM is 96940011, then your MUT table address is 3f314, so you would change that section to address="3f314".)
- Open the HEX or BIN file for your ROM with EcuFlash.
- Scroll down to the "Misc" section, and you should see "MUT Table". Open it, and confirm that it is reading correctly; you should see a large 16x32-element table, with alternating rows of data and FFFF.
Last edited by upstateEVO; Jan 9, 2012 at 12:26 PM.
