Calling all Electrical Guru's
So finally after months of inspecting I was able to figure out that I have a bad ground on my MAP sensor. My question is if this is normal? How could the ground leading to the sensor be bad? Is there an easy fix for this? If anyone could help that would be great. Thank you
#2
EvoM Community Team Leader
Inspect the harness and all pigtails. There are many ways it could happen. Ive seen rodents chew up a harness, it could have been in an accident and poorly repaired etc..
#3
Evolving Member
Thread Starter
Join Date: Aug 2009
Location: Cali
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Whoa. Back at it again. So when I tap into that sensors ground cable and ground it to the battery. My CEL disapears. If my MAP sensor was bad wouldnt that cause my car to run funky?
#4
Evolved Member
If you are talking about the black wire, that ground runs all over the place and is the ground for the crank sensor and the cam sensor before finally becoming a chassis ground at the ECU. Obviously the ground is okay at the ECU or the car wouldn't run. As for running a ground to the nearest metal piece, well I don't know, the ECU probably has some protection in it that you would be bypassing.
What is the resistance between the ground at the maf and the chassis?
What is the resistance between the ground at the maf and the chassis?
Last edited by barneyb; Mar 22, 2016 at 05:13 PM.
#6
Evolved Member

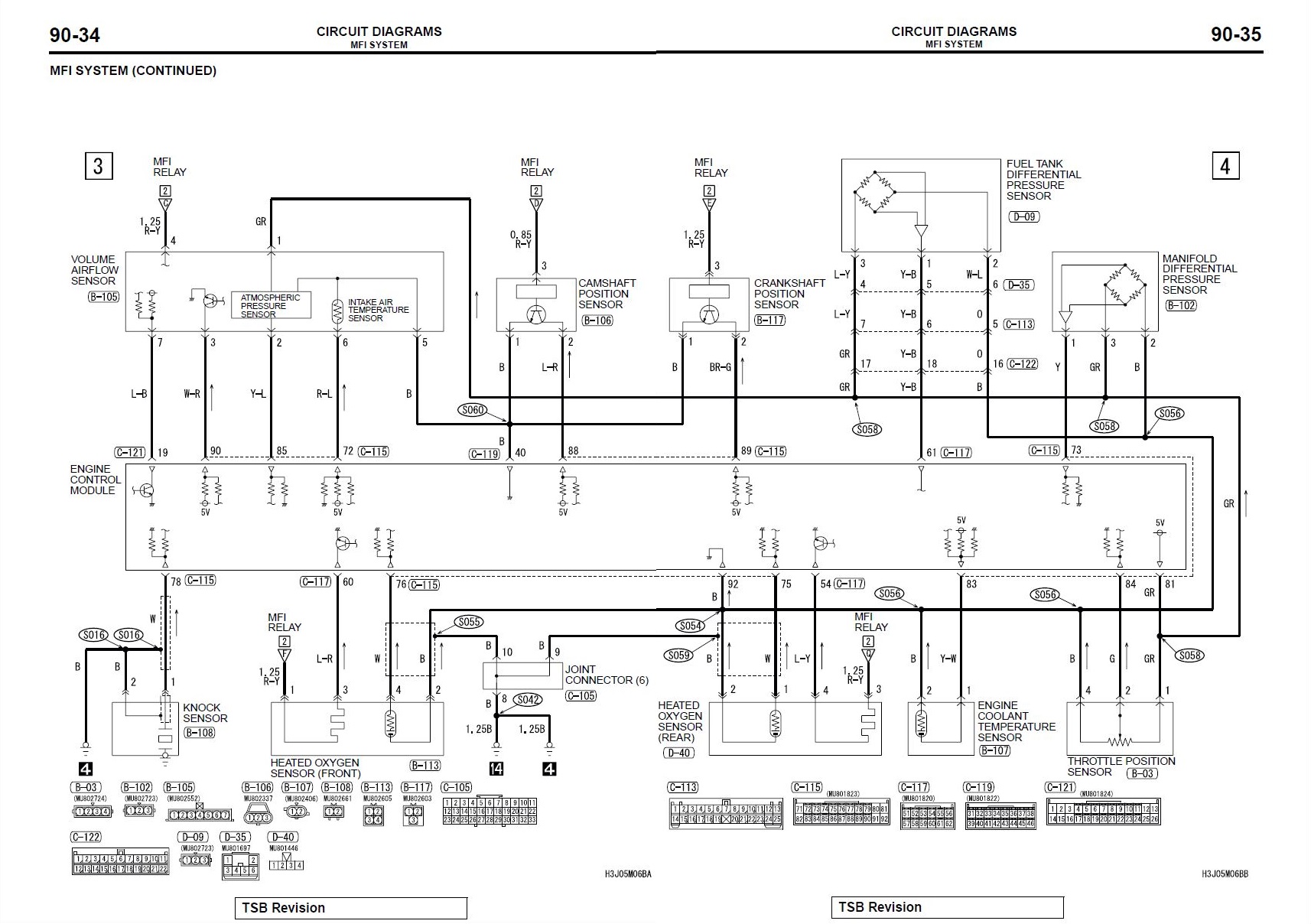

TheBoz has kindly afforded you a circuit diagram. As you can see, splice S060, located under the dash, provides ground for cam, crank and maf by way of pin C119.. It used to be the makers would ground these devices to the chassis but there is less electrical noise, some filtering I guess, via the ECU.
Edit: What code is being set?
Edit: What code is being set?
Last edited by barneyb; Mar 22, 2016 at 10:11 PM.
Trending Topics
#8
Evolving Member
Thread Starter
Join Date: Aug 2009
Location: Cali
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Thanks TheBoz. I have been looking for something like this. I will look into it and let you guys know. Its weird because the senor wire provides a signal and I get 5v on the Gray wire. Thanks for the heads up on it.
#9
Evolved Member
iTrader: (9)
Yes the gray wire is the supply voltage for the sensor, with the ECU powered up you should always see ~+5v. On my fluke meter I see +4.96v.
The yellow wire is a 0-5v output signal from the sensor, and the black is just a ground. So if you have a bad ground you can try to clean all your ground positions. There is one where the battery grounds to the chassis and there are lots of grounds from the engine harness there. Make sure that all of them have been cleaned using a wire brush, and make sure that the bolt and bolt hole are free of surface rust and crap.
The yellow wire is a 0-5v output signal from the sensor, and the black is just a ground. So if you have a bad ground you can try to clean all your ground positions. There is one where the battery grounds to the chassis and there are lots of grounds from the engine harness there. Make sure that all of them have been cleaned using a wire brush, and make sure that the bolt and bolt hole are free of surface rust and crap.
