Accufab throttle body linkage solution
Jul 9, 2004, 09:03 AM
#1
Evolving Member
Thread Starter
Join Date: Nov 2003
Posts: 227
Likes: 0
Received 0 Likes
on
0 Posts

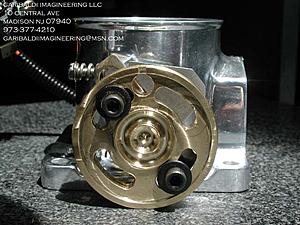

Pics of Accufab throttle body linkage solution
So you get the big TB, but how are you going to make the cable connect so when you step on the gas pedal, the butterfly opens?????????? Heres how...........
Last edited by darkhorse; Jul 9, 2004 at 09:46 AM.
Jul 9, 2004, 10:52 AM
#3
Evolved Member
iTrader: (8)
Join Date: Jul 2003
Location: Northern Jersey
Posts: 726
Likes: 0
Received 0 Likes
on
0 Posts
darkhorse why oh why is everything you do under the hood just plain old gorgeous. I keep telling myself to get my head done at your place over and over again but American Express puts a hold to that really fast. Maybe Christmas time
Jul 9, 2004, 03:16 PM
#7
Evolving Member
Thread Starter
Join Date: Nov 2003
Posts: 227
Likes: 0
Received 0 Likes
on
0 Posts
well, it is sitting on my bench right now and you cant have this one, I need it. It is a tb from a Mustang. All I did was make the bellcrank so that we can run the stock throttle cable on the EVO its going on.
Trending Topics
Jul 9, 2004, 03:53 PM
#9
Evolving Member
Thread Starter
Join Date: Nov 2003
Posts: 227
Likes: 0
Received 0 Likes
on
0 Posts
Yes I just made it yesterday. I needed to come up with a way to be able to run the linkage and this seemed to be the best way. You can use the stock cable, and the slots allow differnt orientations of the crank if need be, as well as a fine adjustment to take up any cable slack by loosening the bolts and pivoting the unit on its axis away from the cable to take up freeplay. Plus I made it from brass so it will look pretty b itchin, even when it gets a patina.
Jul 9, 2004, 08:18 PM
#11
Evolving Member
iTrader: (1)
Join Date: Dec 2003
Location: santa monica
Posts: 390
Likes: 0
Received 0 Likes
on
0 Posts
So the throttlebody BJ's advertises with their intake doesn't bolt up?
A cheap way is to take a scrap eclipse tb and cut off the pulley. Grind the accufab flat and weld the pulley to the accufab. Took 10 minutes but it is secure and it works perfect. Not as pretty though- nice effort!
Below is a pic with the iac you can put on to keep some of the drivability. If you don't put this on, you will be adjusting idle the way you did 30 years ago- with a crack screw on the tb!
This tip on the tb comes courtesy off mark at quantum-racing who got me the bjcs intake manifold and was a giant help.
Nastea: it is a standard accufab 75mm for the ford mustang. You will need a tps and the iac to get it so you can tune around it halfway decent.
Last edited by gt40; Jul 9, 2004 at 08:25 PM.
Jan 17, 2005, 09:57 PM
#13
Evolving Member
iTrader: (1)
Join Date: May 2003
Location: Boca Raton, FL
Posts: 139
Likes: 0
Received 0 Likes
on
0 Posts
Hey Guys
I'm also using a mustang trottle body with a custon bellcrank. However I need to know which IAC to use. I'm considering between GM or Ford. Any ideas on which one work better or better still does anyone have wiring schematics???
Ben
I'm also using a mustang trottle body with a custon bellcrank. However I need to know which IAC to use. I'm considering between GM or Ford. Any ideas on which one work better or better still does anyone have wiring schematics???
Ben
Jan 17, 2005, 09:59 PM
#14
Evolving Member
iTrader: (1)
Join Date: Dec 2003
Location: santa monica
Posts: 390
Likes: 0
Received 0 Likes
on
0 Posts
Talk to Mark at www.quantum-racing.com.
