I just finished my Buschur Stage 2 Install plus a few tweaks and this 2005 Evo 8 has transformed itself from stock to a solid low 12's car. Now to prove my seat of the pants feel at the dragstrip!

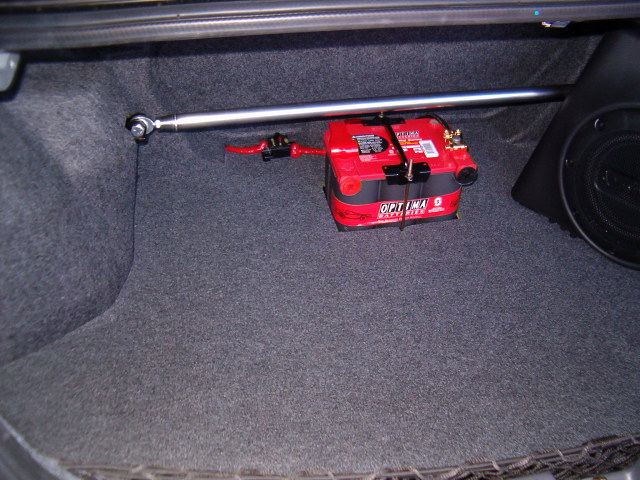

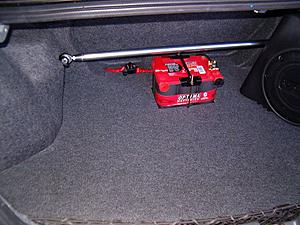

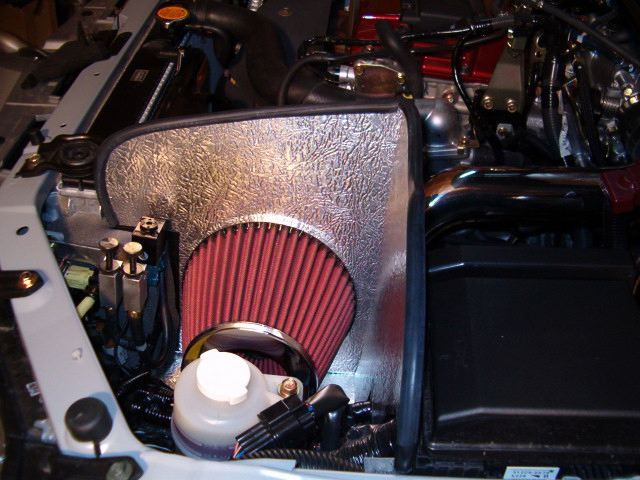

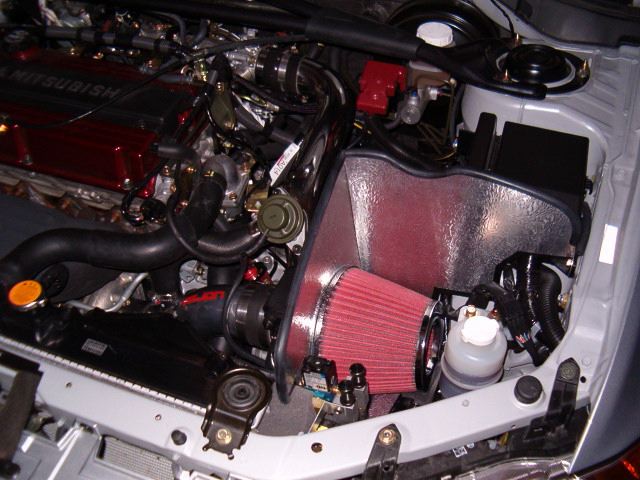

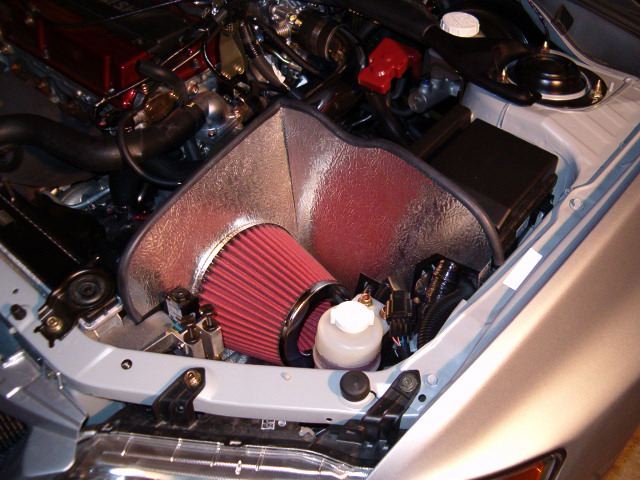

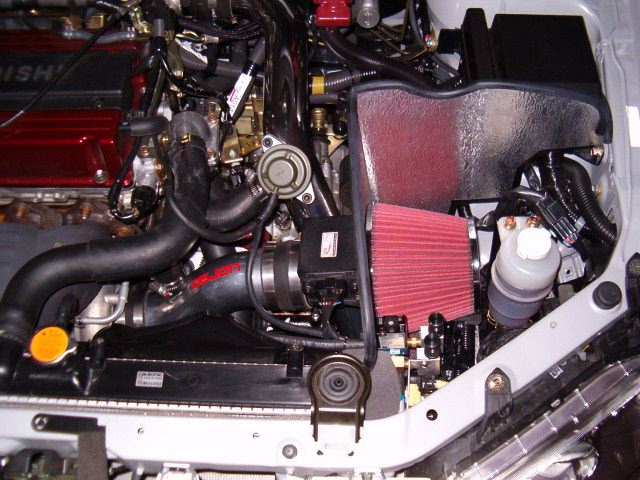

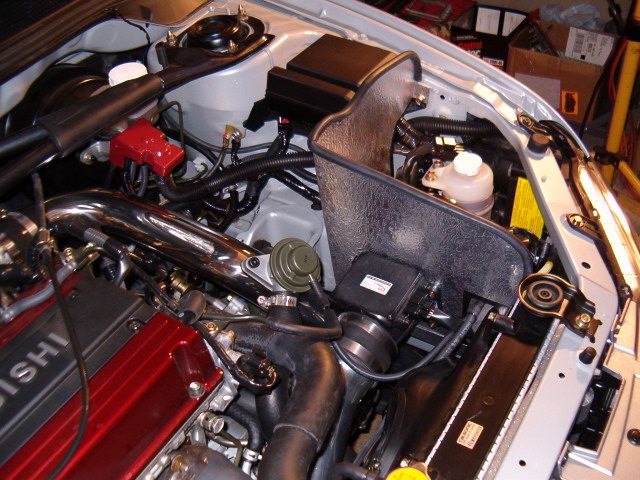

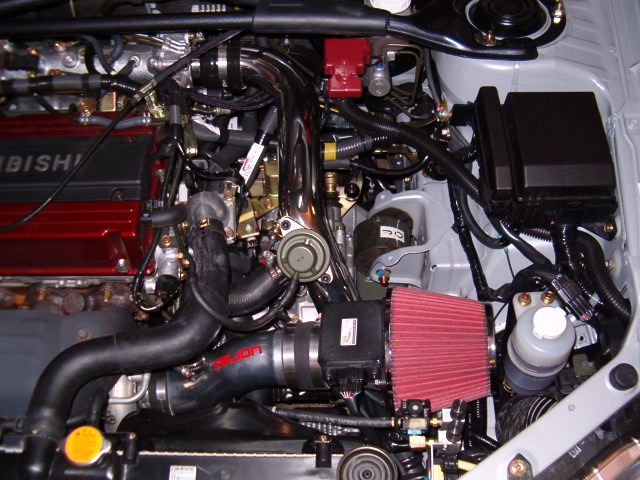

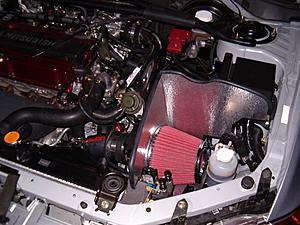

I spent last night cutting out the template for the Cold Air Box for my intake using cereal boxes and finished the job using leather stamped Aluminum. I was able to get a 4" Air duct leading from the front vent and squeaze it to the Buschur Airfilter and Dejon MAS pipe upgrades. To allow this I "adjusted" the bracket for the ACD fluid and pushed it rearward about 1" and then re-attached the reservior. Sharp edges were removed with sand paper and clearance came within 1/4" of the hood once the split vacuum line was put along the edges. For a little extra flow I decided to remove the gasket on the hood above the headlight to allow more airflow as well. Those running stock intakes may want to cut a hole in the gasket leading to the air intake to get some more direct flow going as well. Overall the intake sound got a little quieter over just having the filter open to the engine bay which was a relief since the sound was loud enough to take birds out of the air when the BOV went off! It seemed that people thought I was racing them when as little as 1 PSI was flowing through that setup...
So far it feels like the car has a little more power as today was relatively warm out. Intake temps at the MAS were less than 5F above ambient and seems to have helped bring cooler air to the engine improving response. Cold Air intakes that extend the length of the intake pipes can change throttle response for the worse if not designed correctly so I decided to bring the cold air to the filter.
The only thing I may do is move the MAS inside the cold air box since it is still underhood and gets rather warm but atleast the air entering the filter is right around ambient. Let me know what you guys think.
I spent last night cutting out the template for the Cold Air Box for my intake using cereal boxes and finished the job using leather stamped Aluminum. I was able to get a 4" Air duct leading from the front vent and squeaze it to the Buschur Airfilter and Dejon MAS pipe upgrades. To allow this I "adjusted" the bracket for the ACD fluid and pushed it rearward about 1" and then re-attached the reservior. Sharp edges were removed with sand paper and clearance came within 1/4" of the hood once the split vacuum line was put along the edges. For a little extra flow I decided to remove the gasket on the hood above the headlight to allow more airflow as well. Those running stock intakes may want to cut a hole in the gasket leading to the air intake to get some more direct flow going as well. Overall the intake sound got a little quieter over just having the filter open to the engine bay which was a relief since the sound was loud enough to take birds out of the air when the BOV went off! It seemed that people thought I was racing them when as little as 1 PSI was flowing through that setup...
So far it feels like the car has a little more power as today was relatively warm out. Intake temps at the MAS were less than 5F above ambient and seems to have helped bring cooler air to the engine improving response. Cold Air intakes that extend the length of the intake pipes can change throttle response for the worse if not designed correctly so I decided to bring the cold air to the filter.
The only thing I may do is move the MAS inside the cold air box since it is still underhood and gets rather warm but atleast the air entering the filter is right around ambient. Let me know what you guys think.
