help blitz dtt

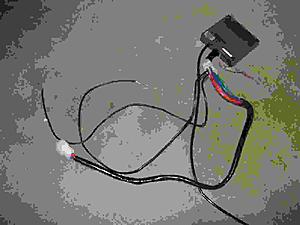

Hey guys I am bought the blitz dtt off a person in the forum and I was wondering if you guys can help me out with the wiring. He sent me the instructions but they were all in japanese.

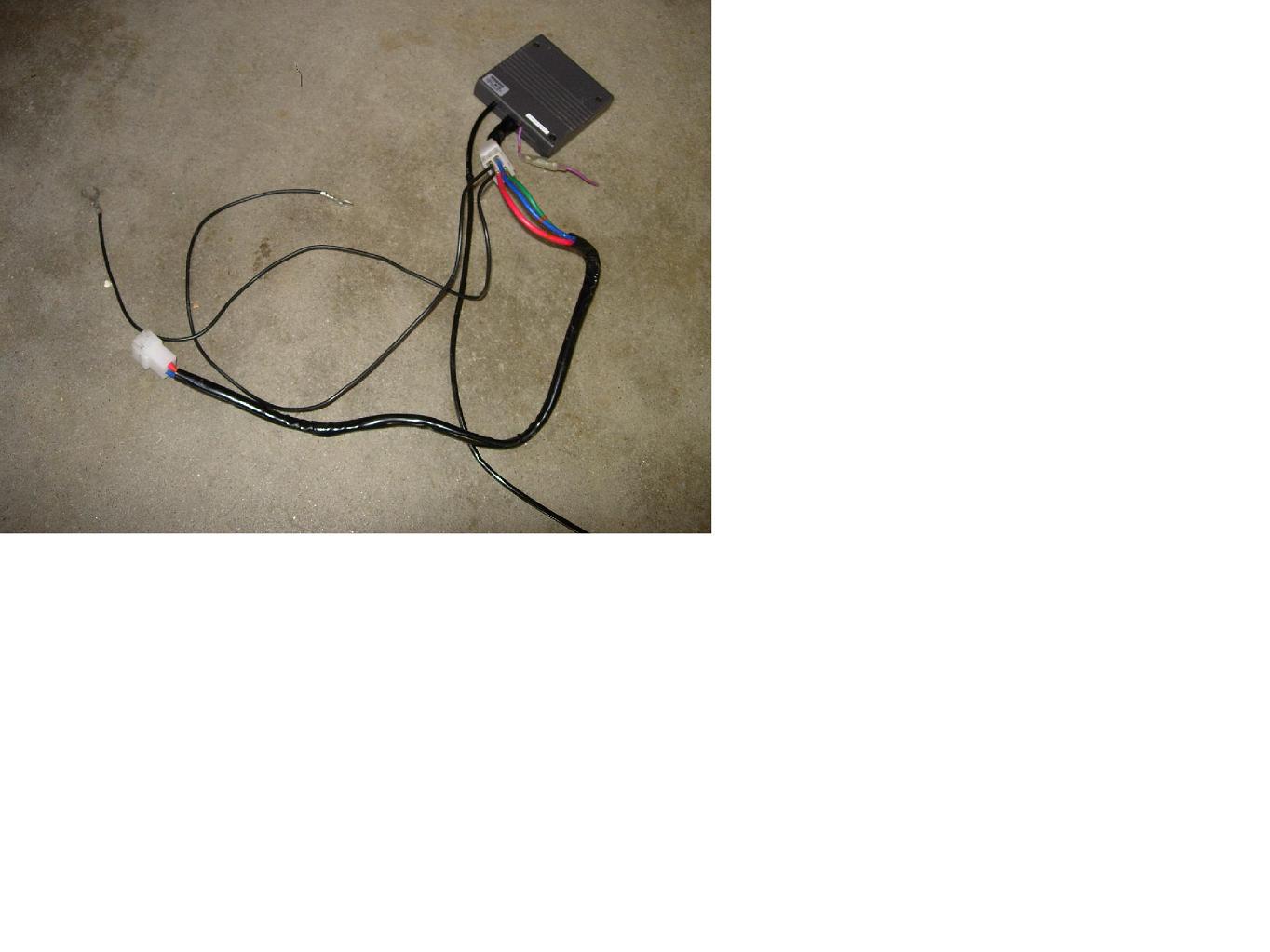

From searching and reading threads about this and due to lost pics I found that the purple wire attaches to the ebrake. I also know that the vacuum hose to the right of the pic is for the boost gauge.
1. First of all I would like to know if he sent me the evo harness?
2. If so, can someone post pics on how it hooks up?
3. I'm assuming the two black wires to the left are for ground? Can someone verify this.
Thanks in advance guys
From searching and reading threads about this and due to lost pics I found that the purple wire attaches to the ebrake. I also know that the vacuum hose to the right of the pic is for the boost gauge.
1. First of all I would like to know if he sent me the evo harness?
2. If so, can someone post pics on how it hooks up?
3. I'm assuming the two black wires to the left are for ground? Can someone verify this.
Thanks in advance guys
Jun 25, 2005, 09:13 PM
#6
Newbie
iTrader: (2)
Join Date: Jan 2005
Location: Modesto, CA
Posts: 79
Likes: 0
Received 0 Likes
on
0 Posts
I have the Blitz DTT-X. My instructions say the harness is optional. Here is what the instruction sheet says about wires:
Purple - ground or handbrake
Black - ground
Red - 12v constant
Blue - secondary ignition or accessory wire
Vaccum tube - vaccum/pressure source behind throttle body.
Is one of the wires purple? You may have to clean it to tell. Hope this helps.
RAW
Purple - ground or handbrake
Black - ground
Red - 12v constant
Blue - secondary ignition or accessory wire
Vaccum tube - vaccum/pressure source behind throttle body.
Is one of the wires purple? You may have to clean it to tell. Hope this helps.
RAW
