Brake Light On

To illuminate the Brake light on the instrument cluster what has to be activated
  • ABS Module / Parking Brake
  • Fluid Reservoir
  • ?? (Drawn in Red)


If I understand correctly when these wires are not grounded or Open the light illuminates? Is that Correct?

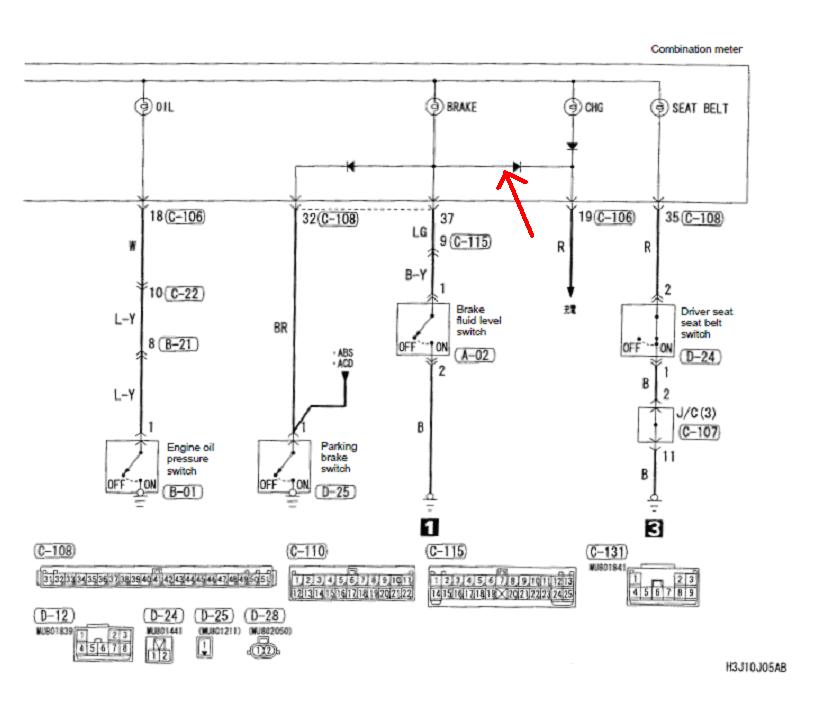

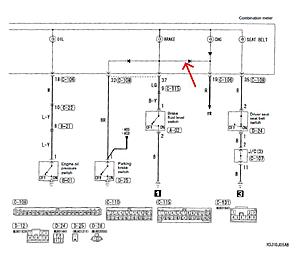

Attached Thumbnails Brake Light On-brake.jpg
Last edited by benderrodriguez; Oct 10, 2011 at 08:56 AM.
benderrodriguez is offline
Reply Like
Old Oct 10, 2011, 09:02 AM
  #2
Newbie

stamlon's Avatar

Join Date: Jan 2010
Location: cincy ohio
Posts: 38
Likes: 0
Received 0 Likes on 0 Posts
also check you battery terminals, i had the brake light on and couldn't figure it out for the hell of me. Noticed my terminals had some corrosion on them, went and bought new ones, installed them.. boom the light went off..
stamlon is offline
Reply Like
Old Oct 10, 2011, 09:07 AM
  #3
Evolving Member
iTrader: (17)

ILoveAWD's Avatar

Join Date: May 2011
Location: Pacific Northwest
Posts: 216
Likes: 0
Received 0 Likes on 0 Posts
Whats the issue is your brake light on?
ILoveAWD is offline
Reply Like
Old Oct 10, 2011, 09:29 AM
  #4
Evolving Member
Thread Starter
iTrader: (26)

benderrodriguez's Avatar

Join Date: Apr 2010
Location: Starkville
Posts: 287
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ILoveAWD
Whats the issue is your brake light on?
Yes, I'm trying to understand the system a little better to see where to start looking.
benderrodriguez is offline
Reply Like
Old Oct 10, 2011, 09:54 AM
  #5
Evolved Member
iTrader: (38)

gsrboi80's Avatar

Join Date: Aug 2005
Location: On a cliff
Posts: 7,909
Received 47 Likes on 43 Posts
If the brake light is on it can be that your pads are getting down there, in turn lowering the level of fluid in the reservoir and triggering the light.

Add a lil brake fluid to reservoir and see if light goes away.
gsrboi80 is offline
Reply Like
Old Oct 10, 2011, 11:02 AM
  #6
Evolving Member
Thread Starter
iTrader: (26)

benderrodriguez's Avatar

Join Date: Apr 2010
Location: Starkville
Posts: 287
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by gsrboi80
If the brake light is on it can be that your pads are getting down there, in turn lowering the level of fluid in the reservoir and triggering the light.

Add a lil brake fluid to reservoir and see if light goes away.
It's definatly not that. Fluid is full
benderrodriguez is offline
Reply Like
Old Oct 10, 2011, 01:54 PM
  #7
Evolving Member
Thread Starter
iTrader: (26)

benderrodriguez's Avatar

Join Date: Apr 2010
Location: Starkville
Posts: 287
Likes: 0
Received 0 Likes on 0 Posts
Anyone know what the red circuit is?
benderrodriguez is offline
Reply Like

Trending Topics

Old Oct 11, 2011, 08:38 AM
  #8
Evolving Member
Thread Starter
iTrader: (26)

benderrodriguez's Avatar

Join Date: Apr 2010
Location: Starkville
Posts: 287
Likes: 0
Received 0 Likes on 0 Posts
help anybody?
benderrodriguez is offline
Reply Like
Old Oct 11, 2011, 08:49 AM
  #9
Evolved Member
iTrader: (11)

ProPilot04's Avatar

Join Date: May 2003
Location: Holding over the VOR
Posts: 1,263
Likes: 0
Received 5 Likes on 4 Posts
1. I hate electrical stuff, so perhaps this is wrong... but is it the ACD switch?
