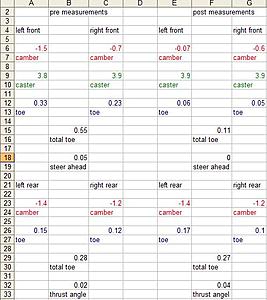

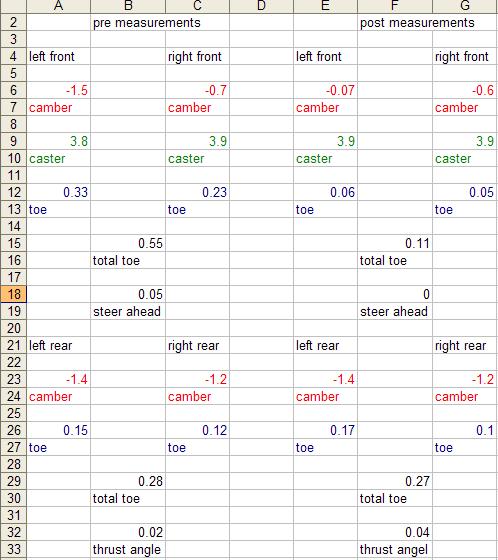

ok so saturday i got my car aligned and i wanted your input on this sheet.i re-wrote it up in excell because i do not have a scanner. they rear was not touched and that concerns me. can rear ajustments be made? im kinda in the clue about this and im trusting them as the shop, but i want to make sure u all think its ok. so please help me. this is all in degrees just so there is no confusion
#2
Evolved Member
iTrader: (14)
Join Date: Sep 2006
Location: Clarksville, TN
Posts: 1,976
Likes: 0
Received 0 Likes
on
0 Posts
This was taken from www.machevo.com. Compare it to this and see where you stand.
According to the Mitsubishi service manual, your Evo should be aligned as follows:
Rear Camber: -1 degree +/- 30'
Rear Toe: 3mm +/- 2mm (0.12" +/- 0.07")
Front Camber: -1 degree +/- 30' or -2 degree +/- 30'
(Two settings available!)
Front camber should be less than 30' difference between the two front wheels.
Front Toe: 0mm +/- 2mm (0.00" +/- 0.08")
According to the Mitsubishi service manual, your Evo should be aligned as follows:
Rear Camber: -1 degree +/- 30'
Rear Toe: 3mm +/- 2mm (0.12" +/- 0.07")
Front Camber: -1 degree +/- 30' or -2 degree +/- 30'
(Two settings available!)
Front camber should be less than 30' difference between the two front wheels.
Front Toe: 0mm +/- 2mm (0.00" +/- 0.08")
#3
Evolved Member
Thread Starter
iTrader: (9)
Join Date: Jan 2005
Location: Albany, NY
Posts: 3,139
Likes: 0
Received 0 Likes
on
0 Posts
This was taken from www.machevo.com. Compare it to this and see where you stand.
According to the Mitsubishi service manual, your Evo should be aligned as follows:
Rear Camber: -1 degree +/- 30'
Rear Toe: 3mm +/- 2mm (0.12" +/- 0.07")
Front Camber: -1 degree +/- 30' or -2 degree +/- 30'
(Two settings available!)
Front camber should be less than 30' difference between the two front wheels.
Front Toe: 0mm +/- 2mm (0.00" +/- 0.08")
According to the Mitsubishi service manual, your Evo should be aligned as follows:
Rear Camber: -1 degree +/- 30'
Rear Toe: 3mm +/- 2mm (0.12" +/- 0.07")
Front Camber: -1 degree +/- 30' or -2 degree +/- 30'
(Two settings available!)
Front camber should be less than 30' difference between the two front wheels.
Front Toe: 0mm +/- 2mm (0.00" +/- 0.08")
#6
The rear adjustment is made by an eccentric at the lower control arm in the rear. Good alignment machines will even show the person doing the job where the adjustments need to be made and even which way they need to turn the bolt or nut to get the required adjustment.
#7
Evolving Member
iTrader: (20)
Join Date: Nov 2004
Location: Detroit area
Posts: 372
Likes: 0
Received 0 Likes
on
0 Posts
Yes the rear can be adjusted.....But when they adjust the rear toe the rear camber will also change.
The front is not very aggressive at all.....should drive around town OK, but for more spirited driving they should have more negative camber up there.
Mattj
The front is not very aggressive at all.....should drive around town OK, but for more spirited driving they should have more negative camber up there.
Mattj
Trending Topics
#8
Evolved Member
iTrader: (55)
Join Date: Aug 2005
Location: Florida
Posts: 1,143
Likes: 0
Received 0 Likes
on
0 Posts
since u guys are being very helpful, I need help 2.. My stock tires went to crap and I only got 10,500 miles got the car aligned at roughly 8300 but it was almost 2 late. How is my alignment??? It's a daily, no autocross or crazy driving for now .
