Old May 1, 2012, 08:16 PM
  #106
Newbie

xmrevo86's Avatar

Join Date: Mar 2012
Location: Albany, NY
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Any setups done with a tablet in dash?
Old May 5, 2012, 06:26 AM
  #107
Evolving Member
iTrader: (1)

MisterHappy's Avatar

Join Date: Nov 2011
Location: Converse, TX
Posts: 280
Likes: 0
Received 0 Likes on 0 Posts

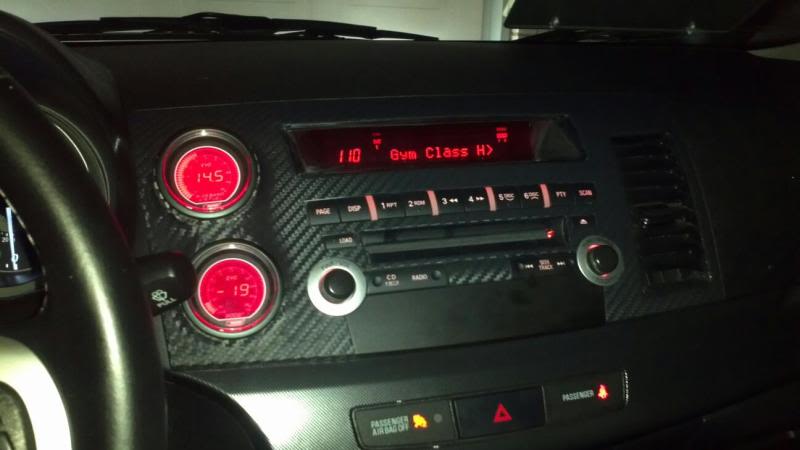

Prosport Boost and AFR
Name:  DashGuages.jpg
Views: 0
Size:  33.6 KB
Old May 6, 2012, 04:03 PM
  #108
Newbie
iTrader: (3)

vicq's Avatar

Join Date: Apr 2011
Location: Arlington Heights
Posts: 46
Likes: 0
Received 0 Likes on 0 Posts
that is bad *** i want it how much for one like it
Old May 8, 2012, 10:48 AM
  #109
Evolved Member
iTrader: (1)

EuroEclipse's Avatar

Join Date: Nov 2006
Location: Colorado Springs
Posts: 522
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by MisterHappy
Prosport Boost and AFR
What setup is that? I think I could do without a vent in that spot.
Old May 8, 2012, 10:56 AM
  #110
Evolved Member
iTrader: (14)

ugakirk's Avatar

Join Date: Apr 2008
Location: Evans, GA
Posts: 2,609
Received 47 Likes on 41 Posts
That is custom guys..
Old May 8, 2012, 11:08 AM
  #111
Evolving Member
iTrader: (2)

chlucero's Avatar

Join Date: Jan 2010
Location: Lubbock
Posts: 168
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by MisterHappy
Prosport Boost and AFR
omg i need it now!! haz allz my moneyz!!!!!!!!!!!!!!!!!!!! PLZ!!!!!!!!!!!!!!!
Old May 8, 2012, 12:57 PM
  #112
Evolving Member
iTrader: (1)

MisterHappy's Avatar

Join Date: Nov 2011
Location: Converse, TX
Posts: 280
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by chlucero
omg i need it now!! haz allz my moneyz!!!!!!!!!!!!!!!!!!!! PLZ!!!!!!!!!!!!!!!
I appreciate it guys, I actually got it from a friend that bought it off a forum. The orginal guy had it custom made, 1 of a kind(that i know of). Best part was the fact that i got if for 45$.
Old May 8, 2012, 05:38 PM
  #113
Evolved Member
iTrader: (14)

ugakirk's Avatar

Join Date: Apr 2008
Location: Evans, GA
Posts: 2,609
Received 47 Likes on 41 Posts

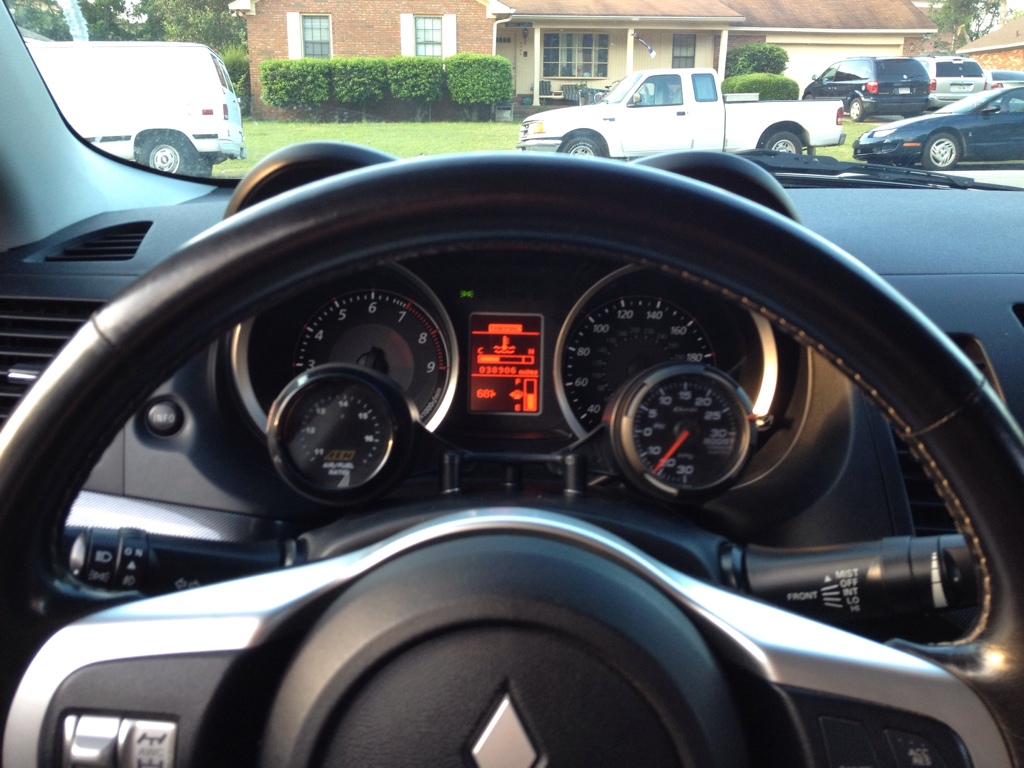

Name:  525d3f04.jpg
Views: 0
Size:  274.3 KB

Perrin gauge pod. Obviously, it blocks some stuff, but it only blocks under 30mph and 2k rpms and I never look at the cluster then anyway.
Old May 8, 2012, 07:16 PM
  #114
Evolved Member
iTrader: (16)

Robevo RS's Avatar

Join Date: Jan 2007
Location: Park Ridge N.J.
Posts: 10,528
Received 47 Likes on 37 Posts
if you dont need stereo or just a single din, this might be a good idea too. This is how we solved this issue:


dont mind the tuner, i have limited pictures from the mid consol, but you get the idea ... LOL
Name:  IMG_2243.jpg
Views: 0
Size:  113.3 KB

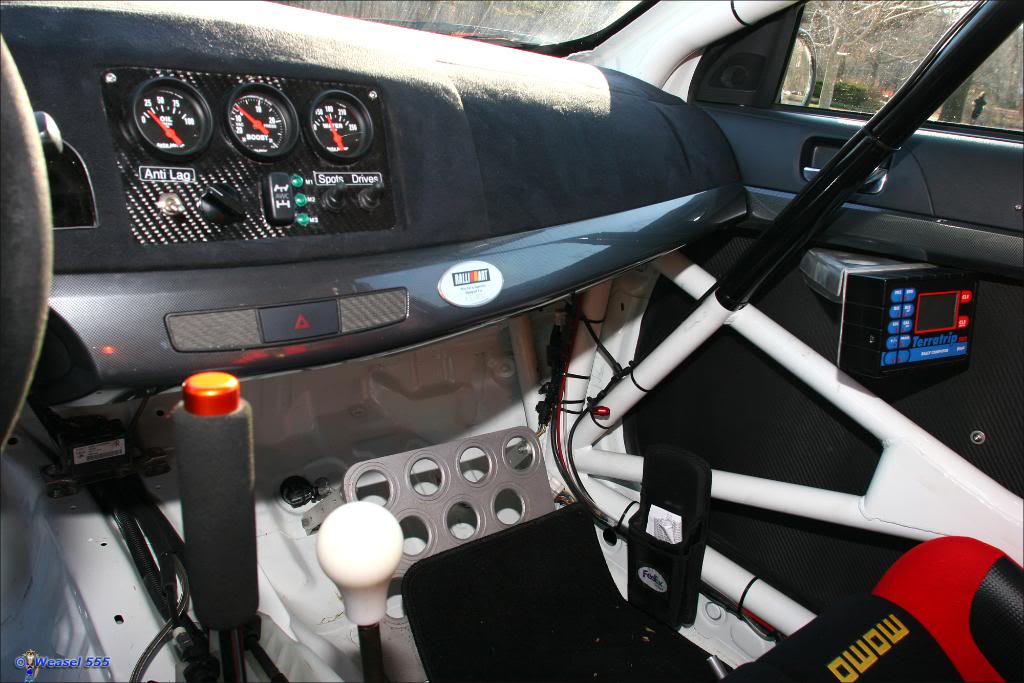

Name:  IMG_9985.jpg
Views: 0
Size:  122.5 KB

Name:  IMG_9986.jpg
Views: 0
Size:  99.9 KB
Old May 8, 2012, 11:57 PM
  #115
Evolved Member
iTrader: (2)

MarkChamorro's Avatar

Join Date: Dec 2011
Location: Orange County, New York
Posts: 550
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Robevo RS
if you dont need stereo or just a single din, this might be a good idea too. This is how we solved this issue:


dont mind the tuner, i have limited pictures from the mid consol, but you get the idea ... LOL




In love with everything about that car. Droooool
Old May 9, 2012, 07:12 PM
  #116
Newbie

Speedd's Avatar

Join Date: Mar 2012
Location: Fort Worth
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Red Display?

I've been looking at alot of these pictures, and noticed the display between the Tach & Speedometer is red. Mine is white. Is there a way to change it, or what is the difference?

(Sorry, not trying to derail.. thanks for any input!)
Old May 10, 2012, 01:25 AM
  #117
Evolving Member

JReid's Avatar

Join Date: Jan 2010
Location: NC
Posts: 208
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Speedd
I've been looking at alot of these pictures, and noticed the display between the Tach & Speedometer is red. Mine is white. Is there a way to change it, or what is the difference?

(Sorry, not trying to derail.. thanks for any input!)
The red/orange display is the 2008. 2010's+ were given colors(white, blue, green, etc). There is not a way to change it as far as I know.
Old May 10, 2012, 05:57 AM
  #118
Evolved Member
iTrader: (14)

ugakirk's Avatar

Join Date: Apr 2008
Location: Evans, GA
Posts: 2,609
Received 47 Likes on 41 Posts
Originally Posted by JReid
The red/orange display is the 2008. 2010's+ were given colors(white, blue, green, etc). There is not a way to change it as far as I know.
This is correct. The only way to change it is to swap the whole cluster. And that gets kinda expensive since you have to program the mileage back in, or it could be illegal because you "tried to change the original mileage". The mileage is not kept in the computer, it's stored in the cluster itself.
Old Dec 30, 2012, 08:48 PM
  #119
Newbie

Oziel's Avatar

Join Date: Aug 2012
Location: San Antonio, Texas
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by GR33DY


It matches the interrior




Hey does that setup get really annoying after a while? I use my EVO for daily driving
Old Jan 5, 2013, 05:14 PM
  #120
Newbie

faYte's Avatar

Join Date: Oct 2009
Location: NY
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
^^^ Damn that looks hot...
