Cadillac CTS-V Sport Wagon!
Mar 30, 2010, 11:31 AM
#1
Cadillac CTS-V Sport Wagon!
556 bhp Grocery getter!!!!!!!!!!
General specifications
Country of origin United States
Numbers built N/A
Introduced 2010
Introduced at 2010 New York Auto Show
Engine
Configuration LSA 90º V 8
Location Front, longitudinally mounted
Construction cast-aluminium block and head
Displacement 6.162 liter / 376 cu in
Bore / Stroke 103.2 mm (4.1 in) / 92.0 mm (3.6 in)
Compression 9.1:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed Fuel Injection
Aspiration Eaton Twin Vortices Supercharger
Drivetrain
Chassis/body unitary steel
Suspension (fr/r) double wishbones, Magnetic Ride Control, anti-roll bar
Steering rack-and-pinion, power assisted
Brakes ventilated discs, all-round, ABS
Gearbox TR6060 6 speed Manual
Drive Rear wheel drive
Dimensions
Weight 1995 kilo / 4398.2 lbs
Length / Width / Height 4859 mm (191.3 in) / 1842 mm (72.5 in) / 1502 mm (59.1 in)
Wheelbase / Track (fr/r) 2880 mm (113.4 in) / 1570 mm (61.8 in) / 1575 mm (62 in)
Performance figures
Power 556 bhp / 415 KW @ 6100 rpm
Torque 747 Nm / 551 ft lbs @ 3800 rpm
BHP/Liter 90 bhp / liter
Power to weight 0.28 bhp / kg

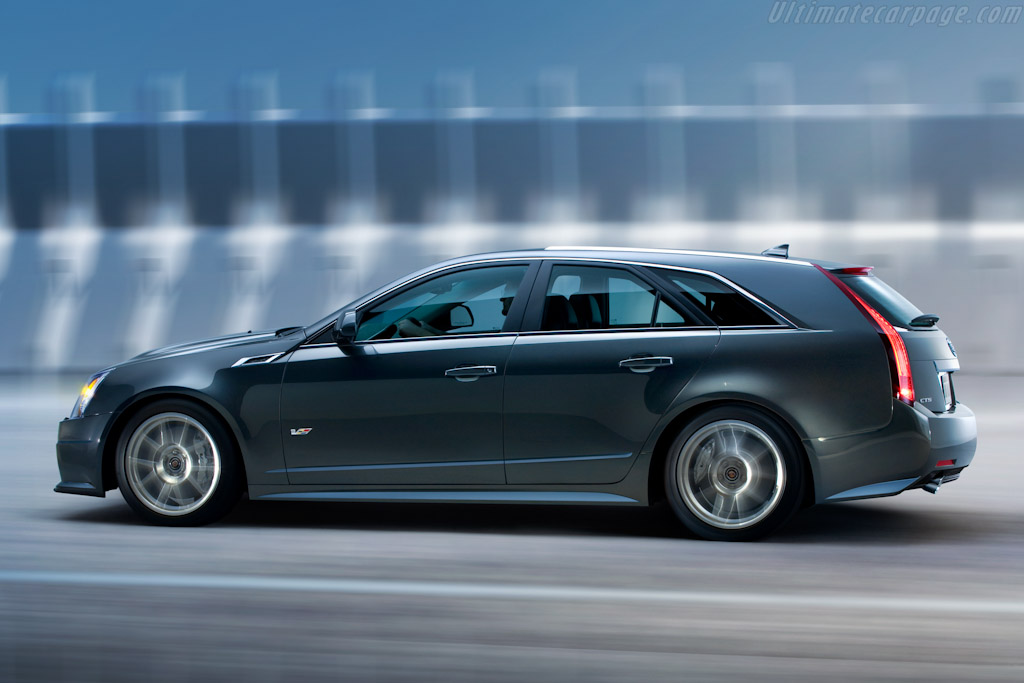

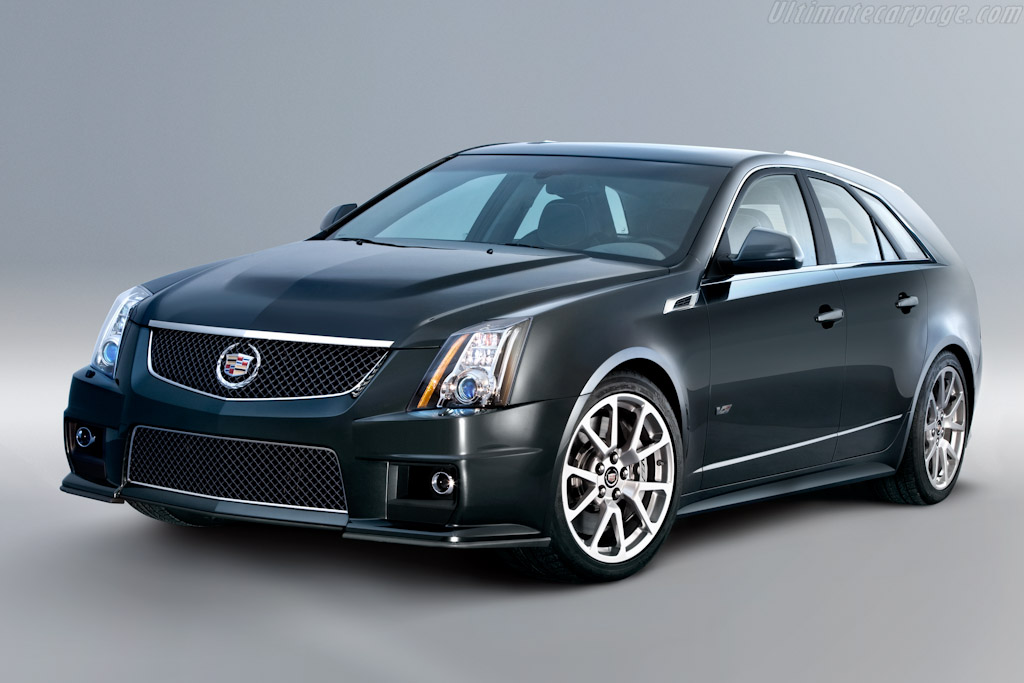

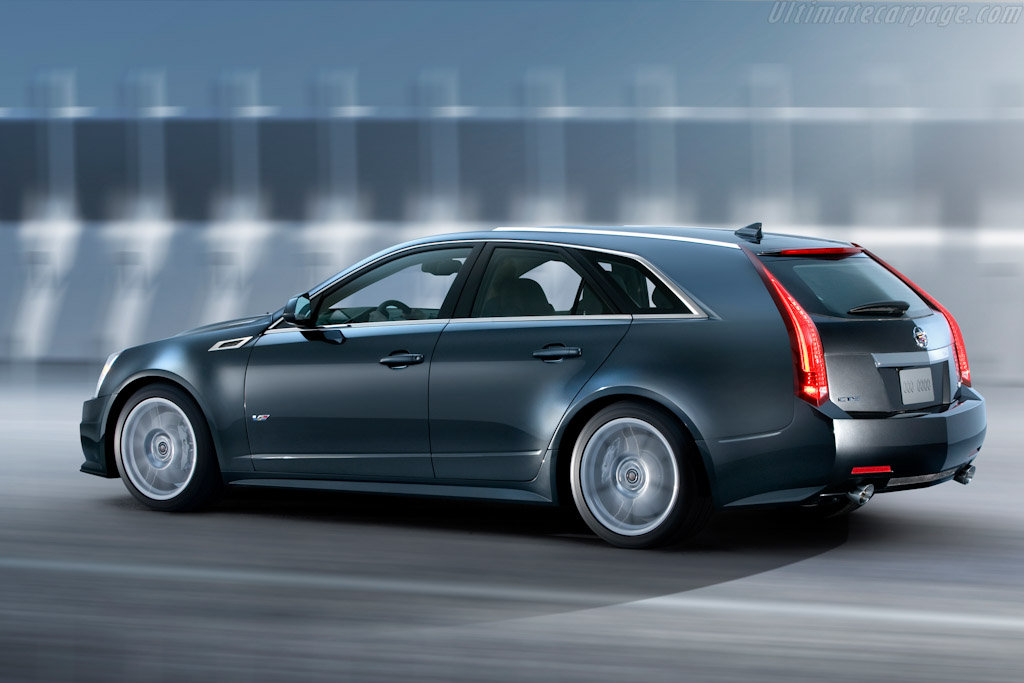

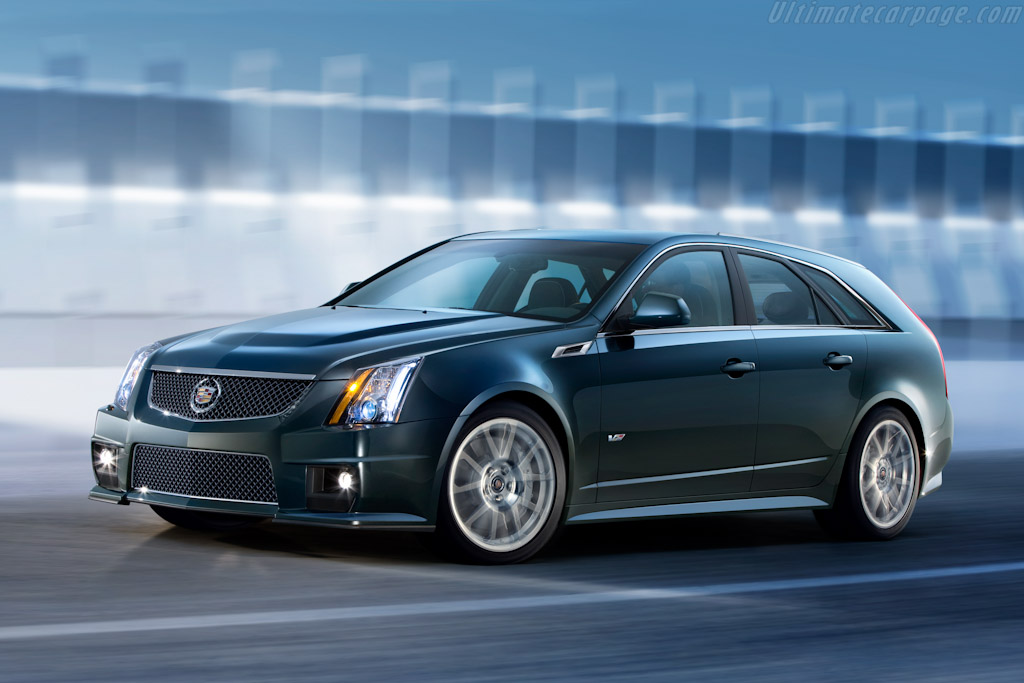

Cadillac unveiled the CTS-V Sport Wagon show car, foreshadowing the next addition to its V-Series performance line. It combines the performance and luxury of the landmark CTS-V Sport Sedan with the dramatic design of the CTS Sport Wagon.
The exterior is finished in Midnight Silver, first seen on the Cadillac Sixteen Concept, and accented by lustrous Liquid Silver-finished wheels and a black chrome finish on the grille's mesh insert. The rear fascia, upper spoiler and center high-mounted stop lamp are also unique to the show car.
Inside, the CTS-V Sport Wagon show car is trimmed in exclusive black leather with Alcantara accents. The upper section of the instrument panel and upper door panels are covered in the same premium leather, accented with midnight Sapele wood, while the microfiber material and stitching is applied to the lower door panels, pillars, console lid, headliner and steering wheel center. The show car features fine-grain black leather-trimmed Recaro seats with Alcantara seat inserts. The seat inserts are divided in the center and accented with dark gray stitching, while the V-series logo is laser etched into the seatbacks. Obsidian Black accents grace the center stack, console, steering wheel and door panels.
The show car's bespoke color and trim elements hint at the potential direction of color and trim in future Cadillac models. These elements are not yet intended for production, but represent Cadillac's desire to gauge customer reaction to new color and trim options.
The CTS-V Sport Wagon will go into production in late 2010, with initial sales in North America, followed by export markets including Europe and the Middle East. The new model rounds out the V-Series offerings, which include all variants of the CTS family's sedan, coupe and sport wagon body styles.
Like its sedan and coupe stable mates, the CTS-V Sport Wagon is powered by a supercharged 6.2L V-8, which delivers 556 horsepower (415 kW) and is backed by either a six-speed manual transmission or a six-speed automatic. A suite of technical and performance elements complement the powertrain, including Magnetic Ride Control, Brembo brakes and Michelin Pilot Sport PS2 performance tires mounted on 19-inch forged aluminum wheels.
Like the other CTS V-Series models, the Sport Wagon incorporates a unique grille that doubles front-end airflow to help enable its high-performance capabilities. It is also visually identified by an aggressive front fascia and raised center section of the aluminum hood that provides clearance for the supercharger. It rides on 19-inch forged aluminum wheels available in painted or polished finishes.
At the rear is a pair of 3-inch (76 mm) chrome exhaust outlets, which caps a performance dual-exhaust system made of high-grade stainless steel that will maintain a lustrous appearance longer than ordinary stainless.
Of course, cargo capability is a hallmark of wagons and the V-Series Sport Wagon delivers with 25.4 cubic feet (720 liters) of space behind the rear seats and 58 cubic feet (1,644 liters) with the seats folded - virtually doubling the available space of the sedan.
The 6.2L supercharged V-8 engine powers the CTS-V Sport Wagon - the same acclaimed engine found in the V-Series Sedan and Coupe models. Rated at 556 horsepower (415 kW) and 551 lb.-ft. of torque (747 Nm), it is the most powerful engine offered in Cadillac's history.
The engine features an intercooled Eaton Twin Vortices Series (TVS) supercharger. This unique supercharger design employs twin four-lobe rotors, twisted 160 degrees. Typical superchargers feature three lobes twisted 60 degrees. The fourth lobe and added twist, when combined with unique air inlet and outlet ports, create smoother, more efficient airflow into the engine. In addition to improved overall efficiency, this supercharger has superior noise and vibration characteristics compared to more ordinary designs.
A pair of six-speed transmissions is offered in the CTS-V Sport Wagon - a Tremec TR6060 six-speed manual with a dual-disc clutch and a Hydra-Matic 6L90 six-speed automatic with steering wheel-mounted shift controls. The steering wheel-mounted controls require no shift lever movement and allow immediate tap up/tap down gear selection. Performance Algorithm Shifting provides the automotive transmission with a performance-oriented shift pattern during sustained high-performance driving. As with many Cadillac models, the driver needs only to slide the shifter into the manual "gate" to put the transmission into a performance mode.
The V-Series achieves exceptional levels of road-holding performance, but also maintains the poise of a luxury car in "regular" driving conditions. The technical enabler of this dual-mode driving character is Cadillac's landmark Magnetic Ride Control. It is standard on the CTS-V Sport Wagon and is the world's fastest-reacting suspension technology. It uses shocks controlled by advanced magneto-rheological technology, rather than mechanical valves, to greatly accelerate response time and precision.
Electronic sensors at all four wheels literally "read the road" every millisecond, making constant adjustments to damping to create virtually instantaneous and extremely precise control of body motions. This is of particular benefit for a high-performance car because it helps keep the car very composed during hard cornering, acceleration, braking and other dynamic maneuvers.
The CTS-V Sport Wagon incorporates sophisticated braking and tire systems, in partnership with two companies renowned for high-performance technology: Brembo and Michelin. Brembo brakes are at all four corners and include powerful, six-piston calipers in the front and four-piston calipers in the rear.
arge vented rotors enable strong initial braking force while optimizing heat resistance and eliminating fade. The brake rotors from Brembo are manufactured with "dual-cast" technology that combines cast iron and aluminum, resulting in superior performance and weight reduction.

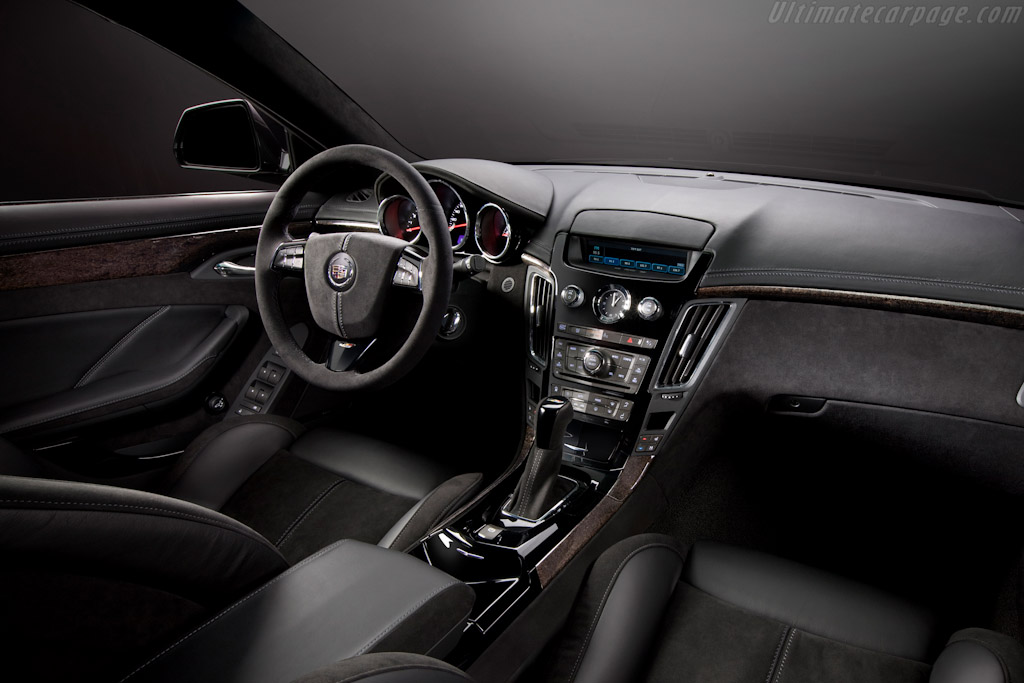

The interior of the CTS-V Sport Wagon is shared with the sedan, including streamlined instrumentation, LED lighting and hand-cut-and-sewn accents.
The CTS-V Sport Wagon production model will come standard with performance seats featuring perforated sueded microfiber inserts designed to hold the driver and front passenger in place during cornering. Recaro performance driving seats are optional and provide excellent support for spirited driving. These 14-way adjustable performance seats include pneumatic bolster controls in the seat cushions and backrests.
Obsidian Black accents grace the center stack, console, steering wheel and door panels. The production steering wheel and shifter are available in Alcantara, providing the luxurious character of suede. These accents are elegant to the touch and aid the driver during support high-performance driving. Just like every CTS, the V-Series includes a hand-stitched instrument panel, door trim and center console.
General specifications
Country of origin United States
Numbers built N/A
Introduced 2010
Introduced at 2010 New York Auto Show
Engine
Configuration LSA 90º V 8
Location Front, longitudinally mounted
Construction cast-aluminium block and head
Displacement 6.162 liter / 376 cu in
Bore / Stroke 103.2 mm (4.1 in) / 92.0 mm (3.6 in)
Compression 9.1:1
Valvetrain 2 valves / cylinder, OHV
Fuel feed Fuel Injection
Aspiration Eaton Twin Vortices Supercharger
Drivetrain
Chassis/body unitary steel
Suspension (fr/r) double wishbones, Magnetic Ride Control, anti-roll bar
Steering rack-and-pinion, power assisted
Brakes ventilated discs, all-round, ABS
Gearbox TR6060 6 speed Manual
Drive Rear wheel drive
Dimensions
Weight 1995 kilo / 4398.2 lbs
Length / Width / Height 4859 mm (191.3 in) / 1842 mm (72.5 in) / 1502 mm (59.1 in)
Wheelbase / Track (fr/r) 2880 mm (113.4 in) / 1570 mm (61.8 in) / 1575 mm (62 in)
Performance figures
Power 556 bhp / 415 KW @ 6100 rpm
Torque 747 Nm / 551 ft lbs @ 3800 rpm
BHP/Liter 90 bhp / liter
Power to weight 0.28 bhp / kg
Cadillac unveiled the CTS-V Sport Wagon show car, foreshadowing the next addition to its V-Series performance line. It combines the performance and luxury of the landmark CTS-V Sport Sedan with the dramatic design of the CTS Sport Wagon.
The exterior is finished in Midnight Silver, first seen on the Cadillac Sixteen Concept, and accented by lustrous Liquid Silver-finished wheels and a black chrome finish on the grille's mesh insert. The rear fascia, upper spoiler and center high-mounted stop lamp are also unique to the show car.
Inside, the CTS-V Sport Wagon show car is trimmed in exclusive black leather with Alcantara accents. The upper section of the instrument panel and upper door panels are covered in the same premium leather, accented with midnight Sapele wood, while the microfiber material and stitching is applied to the lower door panels, pillars, console lid, headliner and steering wheel center. The show car features fine-grain black leather-trimmed Recaro seats with Alcantara seat inserts. The seat inserts are divided in the center and accented with dark gray stitching, while the V-series logo is laser etched into the seatbacks. Obsidian Black accents grace the center stack, console, steering wheel and door panels.
The show car's bespoke color and trim elements hint at the potential direction of color and trim in future Cadillac models. These elements are not yet intended for production, but represent Cadillac's desire to gauge customer reaction to new color and trim options.
The CTS-V Sport Wagon will go into production in late 2010, with initial sales in North America, followed by export markets including Europe and the Middle East. The new model rounds out the V-Series offerings, which include all variants of the CTS family's sedan, coupe and sport wagon body styles.
Like its sedan and coupe stable mates, the CTS-V Sport Wagon is powered by a supercharged 6.2L V-8, which delivers 556 horsepower (415 kW) and is backed by either a six-speed manual transmission or a six-speed automatic. A suite of technical and performance elements complement the powertrain, including Magnetic Ride Control, Brembo brakes and Michelin Pilot Sport PS2 performance tires mounted on 19-inch forged aluminum wheels.
Like the other CTS V-Series models, the Sport Wagon incorporates a unique grille that doubles front-end airflow to help enable its high-performance capabilities. It is also visually identified by an aggressive front fascia and raised center section of the aluminum hood that provides clearance for the supercharger. It rides on 19-inch forged aluminum wheels available in painted or polished finishes.
At the rear is a pair of 3-inch (76 mm) chrome exhaust outlets, which caps a performance dual-exhaust system made of high-grade stainless steel that will maintain a lustrous appearance longer than ordinary stainless.
Of course, cargo capability is a hallmark of wagons and the V-Series Sport Wagon delivers with 25.4 cubic feet (720 liters) of space behind the rear seats and 58 cubic feet (1,644 liters) with the seats folded - virtually doubling the available space of the sedan.
The 6.2L supercharged V-8 engine powers the CTS-V Sport Wagon - the same acclaimed engine found in the V-Series Sedan and Coupe models. Rated at 556 horsepower (415 kW) and 551 lb.-ft. of torque (747 Nm), it is the most powerful engine offered in Cadillac's history.
The engine features an intercooled Eaton Twin Vortices Series (TVS) supercharger. This unique supercharger design employs twin four-lobe rotors, twisted 160 degrees. Typical superchargers feature three lobes twisted 60 degrees. The fourth lobe and added twist, when combined with unique air inlet and outlet ports, create smoother, more efficient airflow into the engine. In addition to improved overall efficiency, this supercharger has superior noise and vibration characteristics compared to more ordinary designs.
A pair of six-speed transmissions is offered in the CTS-V Sport Wagon - a Tremec TR6060 six-speed manual with a dual-disc clutch and a Hydra-Matic 6L90 six-speed automatic with steering wheel-mounted shift controls. The steering wheel-mounted controls require no shift lever movement and allow immediate tap up/tap down gear selection. Performance Algorithm Shifting provides the automotive transmission with a performance-oriented shift pattern during sustained high-performance driving. As with many Cadillac models, the driver needs only to slide the shifter into the manual "gate" to put the transmission into a performance mode.
The V-Series achieves exceptional levels of road-holding performance, but also maintains the poise of a luxury car in "regular" driving conditions. The technical enabler of this dual-mode driving character is Cadillac's landmark Magnetic Ride Control. It is standard on the CTS-V Sport Wagon and is the world's fastest-reacting suspension technology. It uses shocks controlled by advanced magneto-rheological technology, rather than mechanical valves, to greatly accelerate response time and precision.
Electronic sensors at all four wheels literally "read the road" every millisecond, making constant adjustments to damping to create virtually instantaneous and extremely precise control of body motions. This is of particular benefit for a high-performance car because it helps keep the car very composed during hard cornering, acceleration, braking and other dynamic maneuvers.
The CTS-V Sport Wagon incorporates sophisticated braking and tire systems, in partnership with two companies renowned for high-performance technology: Brembo and Michelin. Brembo brakes are at all four corners and include powerful, six-piston calipers in the front and four-piston calipers in the rear.
arge vented rotors enable strong initial braking force while optimizing heat resistance and eliminating fade. The brake rotors from Brembo are manufactured with "dual-cast" technology that combines cast iron and aluminum, resulting in superior performance and weight reduction.
The interior of the CTS-V Sport Wagon is shared with the sedan, including streamlined instrumentation, LED lighting and hand-cut-and-sewn accents.
The CTS-V Sport Wagon production model will come standard with performance seats featuring perforated sueded microfiber inserts designed to hold the driver and front passenger in place during cornering. Recaro performance driving seats are optional and provide excellent support for spirited driving. These 14-way adjustable performance seats include pneumatic bolster controls in the seat cushions and backrests.
Obsidian Black accents grace the center stack, console, steering wheel and door panels. The production steering wheel and shifter are available in Alcantara, providing the luxurious character of suede. These accents are elegant to the touch and aid the driver during support high-performance driving. Just like every CTS, the V-Series includes a hand-stitched instrument panel, door trim and center console.
